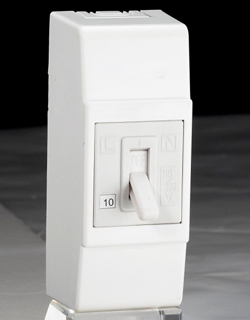

Application:

  • The circuit breaker is used as a protection switch for power supplying a circuit with AC 50Hz or 60Hz, voltage 220V, current up to 32A. It has inherent overload protection function. Combined with a fuse, it can also provide short circuit protection for a circuit. Besides, it can unfrequently make and break a loaded circuit. It is especially suitable for lighting devices in houses and public places, or a single electric appliance such as refrigerator etc.

Technical Data

Type NT50
Number of poles 2P
Rated Current(A) 5, 10, 16, 20, 25, 32A
Breaking Capacity(A) 1500
Rated Voltage(V) 240V

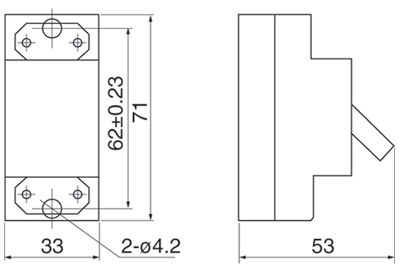

Dimensions

Dimensions

MEM

MEMMEM
MEMMEM

Application:

  • MEM mini circuit breaker applies to industry ,commercial ,lighting and electrical machine distribution system with AC415V,50/60Hz ,rated working current to 63A protect against overload and short circuit ,The item is installed into plug-in type mounting base .

Technical Data

Type MEM
Number of poles 1P, 2P, 3P
Rated Current(A) 32, 63, 100A
Breaking Capacity(A) 3000
Rated Voltage(V) 415V
Frequency(Hz) 50/60Hz
Electrical Life ≥6000
Mechanical Life ≥16000

Hydraulic Magnetic Mini Circuit Breaker

SA3-G3SA3-G3
SX2N 1P+N, SX3N 3P+N Enclosed typeSX2N 1P+N, SX3N 3P+N Enclosed type
SX3, SX3N 3P+NSX3, SX3N 3P+N
SF3 G3SF3 G3

Application:

  • Hydraulic magnetic miniature circuit breaker are mainly suitable for overload and short circuit protection. It adopts hydraulic magnetic trip instead of bimetal. So it has a high sensitivity and it is also not effected by the ambient temperature. It is especially used for illumination and distribution in industry and commerce. They are mainly used for overload and short circuit protection within the circuit of AC 50Hz/60Hz, rated voltage of single pole or double poles up to 240V, three poles up to 415V. They can also be used for an unfrequent switch-over of the circuit and illumination under normal conditions.
  • Standard: IEC 157-1973.

Technical Data

Rated Current (A) Number of poles Rated Voltage (V) Breaking Capacity (A)
SX-G3 SF-G3
SA-G3
3, 5, 6, 10, 16, 20, 25, 32, 40, 50, 63 1P 230/ 240V 3000 6000
2P, 3P 400/ 415V 3000 6000

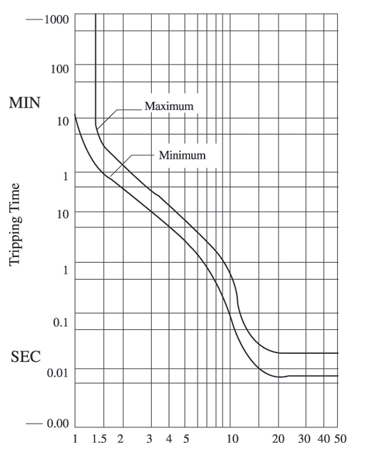

Characteristic Curve

Characteristic Curve

TQA

TQATQA 2P, 3P

Application:

  • TQA series miniature circuit breaker has characteristic of small size ,light weight ,novel structure and excellent performance ,They are mounted in the illuminating distribution board and used in guesthouse, block of flats ,high buildings, squres, airports,rail way station ,plants and enterprises etc, in ACcircuits220 V(single pole)up to 415V(3 pole)50Hz for protection of overload short circuit and for circuit change-over in lighting system ,Braking capacity is 3KA

Technical Data

Type TQA
Number of poles 1P, 2P, 3P
Rated Current(A) 6, 10,16, 20, 25, 30, 40, 50, 63, 70, 80, 90,100A
Breaking Capacity(A) 3000
Rated Voltage(V) 110/ 220V (1P); 240/ 415V (2P); 415V (3P)
Electrical Life ≥6000
Mechanical Life ≥16000

THQL

THQLTHQL
THQL 1/2THQL 1/2

Application:

  • THQL mini circuit breaker applies to industry ,commercial ,lighting and electrical machine distribution system with AC415V,50/60Hz ,rated working current to 100A protect against overload and short circuit ,The item is installed into plug-in type mounting base.
  • THQL1/2 miniature circuit breaker applies to industrial, commerical, lighting and electric machine distribution system with AC415V, 50/60Hz, rated working current up to 100A to protect against overload and short circuit. The item is installed into plug-in type mounting base.

Technical Data

Type THQL, THQL 1/2
Number of poles 1P, 2P, 3P
Rated Current(A) 6, 10,16, 20, 25, 30, 40, 50, 63, 70, 80, 90,100A
Breaking Capacity(A) 3000
Rated Voltage(V) 110/ 220V (1P); 240/ 415V (2P); 415V (3P)
Electrical Life ≥6000
Mechanical Life ≥20000

TQL

TQLTQL 3P
TQLTQL 1P, 2P

Application:

  • TQL series miniature circuit breaker has characteristic of small size ,light weight ,novel structure and excellent performance ,They are mounted in the illuminating distribution board and used in guesthouse, block of flats ,high buildings, squres, airports,rail way station ,plants and enterprises etc,

Technical Data

Type TQL
Number of poles 1P, 2P, 3P
Rated Current(A) 6, 10,16, 20, 25, 30, 40, 50, 63, 70, 80, 90,100A
Breaking Capacity(A) 3000
Rated Voltage(V) 110/ 220V (1P); 240/ 415V (2P); 415V (3P)
Electrical Life ≥6000
Mechanical Life ≥20000

SQUARE D

SQUARE DSQUARE D

Application:

  • D series black mini circuit breaker has high breaking capacity ,reaction speed ,ease of use ,the replace of fast ,long life , They are mounted in the illuminating distribution board and used in guesthouse, block of flats ,high buildings, squres, airports,rail way station ,plants and enterprises etc in ACcircuits220 V(single pole)up to 415V(3 pole)50Hz for protection of overload short circuit and for circuit change-over in lighting system ,Braking capacity is 3KA

Technical Data

Type D
Number of poles 1P, 2P, 3P
Rated Current(A) 6, 10,16, 20, 25, 30, 40, 50, 63, 70, 80, 90,100A
Breaking Capacity(A) 3000
Rated Voltage(V) 110/ 220V (1P); 240/ 415V (2P); 415V (3P)
Electrical Life ≥6000
Mechanical Life ≥20000

BH-P

BH-PBH-P 1P, 2P
BH-PBH-P 3P

Application:

  • BH-P mini circuit breaker applies to industry ,commercial ,lighting and electrical machine distribution system with AC415V,50/60Hz ,rated working current to 100A protect against overload and short circuit ,The item is installed into plug-in type mounting base

Technical Data

Type BH-P
Number of poles 1P, 2P, 3P
Rated Current(A) 6, 10,16, 20, 25, 30, 40, 50, 63, 70, 80, 90,100A
Breaking Capacity(A) 3000
Rated Voltage(V) 110/ 220V (1P); 240/ 415V (2P); 415V (3P)
Electrical Life ≥6000
Mechanical Life ≥16000

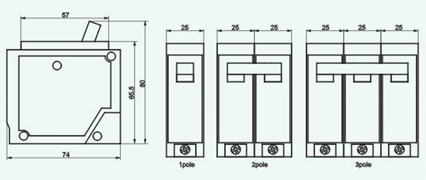

Dimensions

Dimensions

BH

BHBH

Application:

  • BH series miniature circuit breaker has characteristic of small size ,light weight ,novel structure and excellent performance ,They are mounted in the illuminating distribution board and used in guesthouse, block of flats ,high buildings, squres, airports,rail way station ,plants and enterprises etc, in ACcircuits220 V(single pole)up to 415V(3 pole)50Hz for protection of overload short circuit and for circuit change-over in lighting system ,Braking capacity is 3KA

Technical Data

Type BH
Number of poles 1P, 2P, 3P
Rated Current(A) 6, 10,16, 20, 25, 30, 40, 50, 63, 70, 80, 90,100A
Breaking Capacity(A) 3000
Rated Voltage(V) 110/ 220V (1P); 240/ 415V (2P); 415V (3P)
Electrical Life ≥6000
Mechanical Life ≥16000

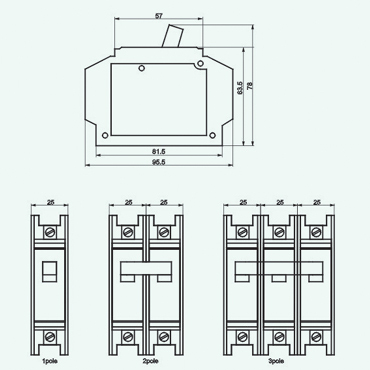

Dimensions

Dimensions
