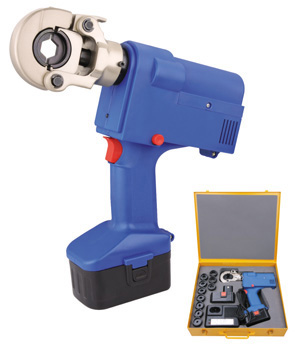

Battery Powered Tool EHT-300 (Battery Powered Crimping Tool 16-300mm2)

Battery Powered Tool EHT-300

Features:

  • For interchangeable dies, narrow crimping.
  • Crimping head rotates 360°, flip top style.
  • Two stage hydraulics.
  • Quick motor stop.
  • Motor stop and automatic retraction when crimp is complete.
  • Manual retraction in case of need.
  • Electronic control and monitoring of crimping operation.
  • Light diode for battery charge and maintenance control.
  • High-performance 3.0Ah NIMH battery.

    • Applications:

  • Cu compression cable lugs and compression joints (16-300mm2 )
  • Al compression cable lugs and compression joints (10-240mm2 )

    • Technical Data

    Type EHT-300
    Crimping Force 60KN
    Stroke 17mm
    Crimps per charge 160crimps (Cu cable 150mm2)
    Crimping cycle 3s up to 6s (depend on the size)
    Weight 5.8kgs (w/o charger)
    Battery voltage 18V
    Battery capacity 3.0Ah
    Charging time 2-2.5h
    Package Steel case
    Weight of case 5Kgs
    Accessories
    Crimping Dies. 16, 25, 35, 50, 70, 95, 120, 150, 185, 240, 300mm2
    Battery 2pcs
    Charger 1pcs
    O-Ring for oil vat 1set
    O-Ring for safety valve 1set

    Top

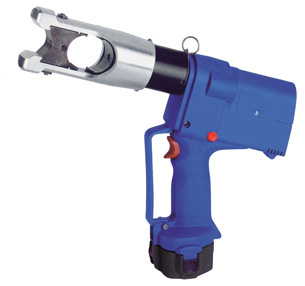

    Battery Powered Tool EHT-400U (Battery Powered Crimping Tool 16-400mm2)

    Battery Powered Tool EHT-400U

    Features:

  • For interchangeable dies.
  • Crimping head H type, rotates 360°.
  • Two stage hydraulics.
  • Quick motor stop.
  • Motor stop and automatic retraction when crimp is complete.
  • Electronic control and monitoring of crimping operation.
  • Light diode for battery charge and maintenance control.
  • High-performance 3.0Ah NIMH battery.

    • Applications:

  • Cu compression cable lugs and compression joints (16-400mm2 )
  • Al compression cable lugs and compression joints (10-300mm2 )

    • Technical Data

    Type EHT-400U
    Crimping Force 130KN
    Stroke 20mm
    Crimps per charge 75crimps (Cu cable 150mm2)
    Crimping cycle 6s up to 13s (depend on the size)
    Weight 5.95kgs (w/o charger)
    Battery voltage 18V
    Battery capacity 3.0Ah
    Charging time 2-2.5h
    Package Steel case
    Weight of case 5.5Kgs
    Accessories
    Crimping Dies. 16, 25, 35, 50, 70, 95, 120, 150, 185, 240, 300mm2
    Battery 2pcs
    Charger 1pcs
    O-Ring for oil vat 1set
    O-Ring for safety valve 1set

    Top

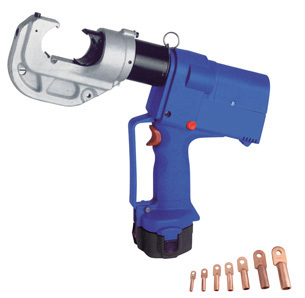

    Battery Powered Tool EHT-400 (Battery Powered Crimping Tool 16-400mm2)

    Features:

  • For interchangeable dies.
  • Crimping head C type, rotates 360°.
  • Two stage hydraulics.
  • Quick motor stop.
  • Motor stop and automatic retraction when crimp is complete.
  • Electronic control and monitoring of crimping operation.
  • Light diode for battery charge and maintenance control.
  • High-performance 3.0Ah NIMH battery.

    • Applications:

  • Cu compression cable lugs and compression joints (16-400mm2 )
  • Al compression cable lugs and compression joints (10-300mm2 )

    • Technical Data

    Type EHT-400
    Crimping Force 130KN
    Stroke 42mm
    Crimps per charge 75crimps (Cu cable 150mm2)
    Crimping cycle 8.5s up to 15s (depend on the size)
    Weight 6.8kgs (w/o charger)
    Battery voltage 18V
    Battery capacity 3.0Ah
    Charging time 2-2.5h
    Package Steel case
    Weight of case
    Accessories
    Crimping Dies. 16, 25, 35, 50, 70, 95, 120, 150, 185, 240, 300mm2
    Battery 2pcs
    Charger 1pcs
    O-Ring for oil vat 1set
    O-Ring for safety valve 1set

    Top

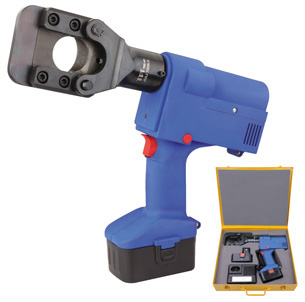

    Battery Powered Tool EHC-45 (Cable Cutter Φ45mm Cu/Al cable and armored Cu/Al cable)

    Battery Powered Tool EHC-45

    Features:

  • Closed cutting head with bolt interlock, Rotates 360°, flip top style.
  • Two stage hydraulics.
  • Quick motor stop.
  • Automatic retraction when cut is complete.
  • Manual retraction in case of need.
  • Electronic control.
  • Light diode for battery charge and maintenance control.
  • High-performance 3.0Ah NIMH battery.

    • Technical Data

    Type EHC-45
    Cutting Force 60KN
    Cutting Range Φ45mm
    Cuts per charge 70cuts
    Weight 5.3kgs (w/o charger)
    Battery voltage 18V
    Battery capacity 3.0Ah
    Charging time 2-2.5h
    Package Steel case
    Weight of case 5Kgs
    Accessories
    Battery 2pcs
    Charger 1pcs
    O-Ring for oil vat 1set
    O-Ring for safety valve 1set

    Top

    Battery Powered Pumping Tool EHP-60

    Battery Powered Pumping Tool EHP-60

    Features:

  • Crimping head rotates 360°, flip top style.
  • Two stage hydraulics.
  • Quick motor stop.
  • Manual retraction in case of need.
  • Electronic control.
  • Light diode for battery charge and maintenance control.
  • High-performance 3.0Ah NIMH battery.

    • Technical Data

    Type EHP-60
    Pressure 50Mpa
    Stroke 42mm
    Weight 6.8kgs (w/o charger)
    Battery voltage 18V
    Battery capacity 3.0Ah
    Charging time 2-2.5h
    Package Steel case
    Accessories
    Battery 2pcs
    Charger 1pcs
    O-Ring for oil vat 1set
    O-Ring for safety valve 1set

    Top

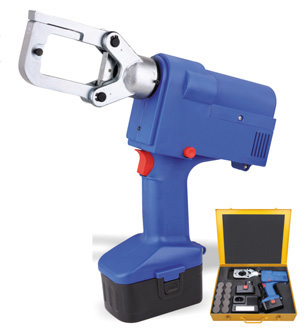

    Battery Multi-Functional Tool ET60UNV

    Battery Multi-Functional Tool ET60UNV

    Features:

  • Universal head rotates 360°, flip top style.
  • Two stage hydraulics.
  • Quick motor stop.
  • Automatic retraction when cut is complete.
  • Manual retraction in case of need.
  • Electronic control and monitoring of crimping operation.
  • To drive crimping, cutting and punching head.
  • Light diode for battery charge and maintenance control.
  • High-performance 3.0Ah NIMH battery.

    • Technical Data

    Type ET60UNV
    Working Force 60KN
    Stroke 42mm
    Crimps per charge 5s-8scrimps (depend on the size of cable)
    Crimping cycle 8s-20s (depend on the size of cable)
    Weight 5.1kgs
    Battery voltage 18V
    Battery capacity 3.0Ah
    Charging time 2-2.5h
    Crimping capacity approx. 120 crimps (Cu 150mm2)
    Punching capacity approx. 60 holes (in 3.0mm mild steel)
    Cutting capacity approx. 70 cuts (4x70mmmm2NYY)
    Accessories
    Crimping Dies. 16, 25, 35, 50, 70, 95, 120, 150, 185, 240, 300mm2
    Round Punch Φ22, Φ28, Φ34, Φ43, Φ49, Φ60.5mm
    Adapter for crimping 1set
    Adapter for punching 1set
    Blade 1pair
    Battery 2pcs
    Charger 1pcs
    O-Ring for oil vat 1set
    O-Ring for safety valve 1set

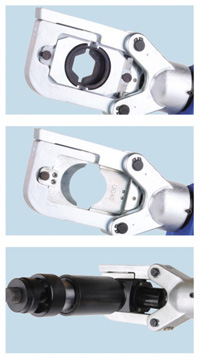

    Adapter and Dies for ET60UNV

    Adapter Application: Crimping Crimping Profile
    Cu compression cable lugs and compression joints 16-300mm2
    Al compression cable lugs and compression joints 10-240mm2
    Blade Application: Crimping
    Φ40mm Cu/Al cable ad Armored Cu/Al cable
    Adapter Application: Crimping Crimping Profile
    Round Punches:
    The thickness below 3mm (Φ16.5-60.5mm) for mild steel
    The thickness below 2mm (Φ16.5-115.5mm) for mild steel
    The thickness below 3mm (Φ16.5-60.5mm) for stainless steel

    Top
