Busbar System

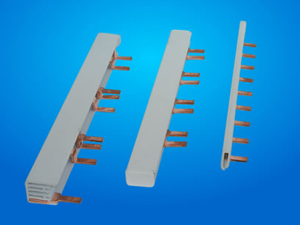

Comb(PIN) Type Busbar

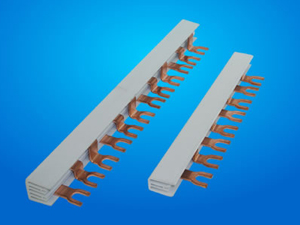

Fork(U) Type Busbar

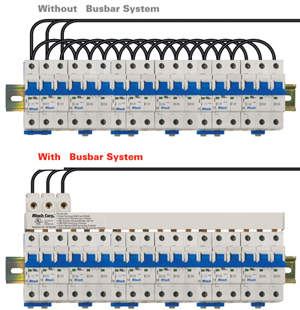

With and Without Busbar System
The Busbar System is an innovative way to jumper up to 57 poles of Manual Motor Controllers (MMC) and Supplementary Protectors (SP).
The advantages of this busbar system are:
- 30% Installation time savings
- Panel space savings
- Reduced maintenance
- High electrical ratings
Busbar 1P+N
- Shape: Pin type
- Rated current: 32A
- Rated insulating volatage: 500V AC
- Flammability of plastic part: class 1
| Items | Rating (Amps) | Terminals | Pack Qty. | Length | Cat. No. |
| 1P+N | 32A | 56 | 100 | 1m | BB101N |
Busbar 1P,2P,3P,4P
- Shape: Pin type, Fork type
- Rated current: 63,125A
- Rated insulating voltage: 500VAC
- Flammbaility of plastic part: class 1
| Items | No. of pole | Current Rating (Amps) | Terminals | Cat. No. |
| (PIN) Type | 1 | 63A | 56(55) | BB101 |
| 100A | 56(55) | BB101A | ||
| 2 | 63A | 27 | BB201 | |
| 100A | 27 | BB201A | ||
| 3 | 63A | 18 | BB301 | |
| 100A | 18 | BB301A | ||
| 4 | 63A | 14 | BB401 | |
| 100A | 14 | BB401A |
| Items | No. of pole | Current Rating (Amps) | Terminals | Cat. No. |
| Fork Type | 1 | 63A | 56(55) | BB102 |
| 100A | 56(55) | BB102A | ||
| 2 | 63A | 27 | BB202 | |
| 100A | 27 | BB202A | ||
| 3 | 63A | 18 | BB302 | |
| 100A | 18 | BB302A | ||
| 4 | 63A | 14 | BB402 | |
| 100A | 14 | BB402A |

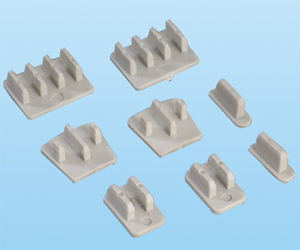

End Cap
- Adaptable to full range busbars
- Used to insulate the exposed living parts at both ends of busbar
Terminal Adaptor
- Application to busbar for terminal connection
- Fixed on busbar insulating part to secure high reliability
- Connection capacity: 25mm2
SK805
SK806
SK625P
SK625UDimension
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
Power Feed Methods
1) Start/End Feed Method
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
2) Center/Middle Feed Method
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
Assembly Instructions
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
