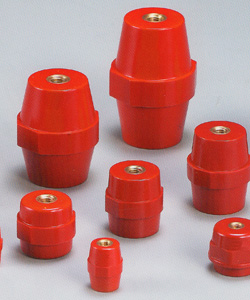

Drum Insulator
SM Series

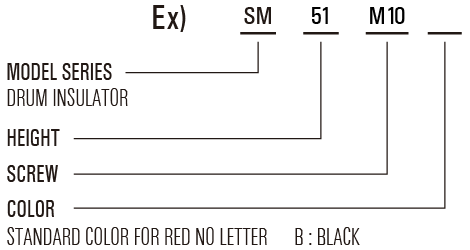

Classification models
SM Series
Feature
- Variety of Color
- Variety of Screw M5, M6, M8, M10, M12
- Made of bulk molding compound, unsaturated polymer with fiber glass(BMC, DMC),
- Good electrical resistance, heat resistance, fire resistance, low shrinkage and water resistance properties
Technical Data

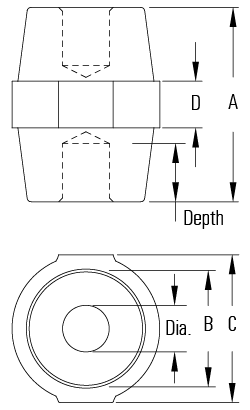

Fig. 1
Fig. 2| Type | Dimension (mm) | Screw (mm) | Tensile strength (LBS) |
Voltage withstand (KV) |
Torgue strength (FT LBS) |
|||||
| A | B | C | D | Fig. | Dia. | Depth | ||||
| SM-20 | 20 | Φ15 | 17 | 5 | Fig. 1 | M5 | 7 | 300 | 5 | 4 |
| SM-25S | 25 | Φ15 | 19 | 6 | Fig. 1 | M6 | 8 | 400 | 6 | 5 |
| SM-25 | 25 | Φ23 | 30 | 10 | Fig. 2 | M6 | 9 | 500 | 6 | 6 |
| SM-30 | 30 | Φ27 | 32 | 10 | Fig. 1 | M8 | 11 | 550 | 8 | 8 |
| SM-35 | 35 | Φ28 | 32 | 10 | Fig. 1 | M8 | 11 | 600 | 10 | 10 |
| SM-40 | 40 | Φ33 | 40 | 10 | Fig. 1 | M8 | 11 | 650 | 12 | 12 |
| SM-45 | 45 | Φ30 | 36 | 10 | Fig. 1 | M8 | 11 | 1000 | 14 | 20 |
| SM-51 | 51 | Φ29 | 36 | 12 | Fig. 1 | M8 | 14 | 1000 | 15 | 20 |
| SM-60 | 60 | Φ34 | 46 | 13 | Fig. 1 | M10 | 15 | 1200 | 20 | 35 |
| SM-76 | 76 | Φ35 | 50 | 15.5 | Fig. 1 | M10 | 20 | 1500 | 25 | 40 |
