Electrical Crimping Tools

Features:

• Type EM-6B2 is an ideal crimper for connection in cabinet.It is applicable for pre-insulated terminal crimping from 0.25 mm² to 10 mm² and Cu/Al cutting in 7mm.
• It is supplied with seven kinds of accurate and replaceable die sets.
• The crimper has high working efficiency and wide application.
• The crimper is driven by fixed speed motor so that it owns advantages of high efficiency and high quality not only in crimping force but crimping speed.
• It is good for terminal crimping in large or medium quantity.
• If there are a lot of different kinds of terminals to be crimped, this crimper is the best choice.

Technical Data

Model	Output Force (KN)	Max. Crimping	Crimping Time	Volts	Power	Dimension (mm)	Weight (kgs)
EM-61B	12.7	5.5mm2	1.5sec.(60Hz) 1.8sec.(50Hz)	AC100-250V	90W	325x265x150	12.0
EM-62B				AC200-230V

Applicable Crimping Tools

Model	Range		Terminal
	AWG	DIN
LY-03C	20-10	0.5~6	Insulated Terminal
HS-10	18-10	1.5~6	Non-Insulated Terminal
HS-101	18-8	1.5~10
HS-04WFL	20-12	0.5~4	Code-End Terminal
HS-03B	18-10	1.5~6	Non-Insulated Tabs and Receptacles
C-C7	CU/AL Dia. 7mm or Below		Cutting Terminal
HS-02H	6.5mm, 5.4mm, 1.72mm
RG55, 58, 59, 62, 140, 142, 223, 303, 400, Fiber optic, Belden 8279

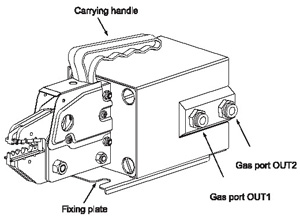

Pneumatic Crimping Tools

Features:

• The machine is driven by dual-action normal cylinder, which has advantages of high efficiency and quality in crimping force and speed. The machine is fit for crimping many kinds of terminals. The die sets are interchangeable with our manual crimping tools. So we can provide you all kinds of die sets for crimping.
• Accessories: One die set, one foot air valve, two air pipes.

Technical Data

Model	Range of Application	Output Force (KN)	Air Pressure	Dimension (mm)	Weight (kgs)
AM-10	Non-Insulated Terminal ≥10mm2 Insulated Terminal ≥6mm2 Cord End Terminal ≥25mm2	13.5	0.4~1Mpa	260x120x140	4.0
