Floor Standing Enclosure

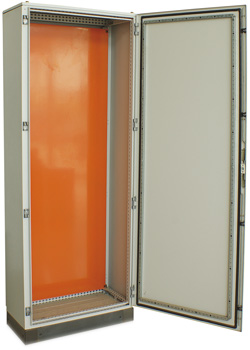

Single Door
Floor Standing Enclosure
Double Door

CL Series

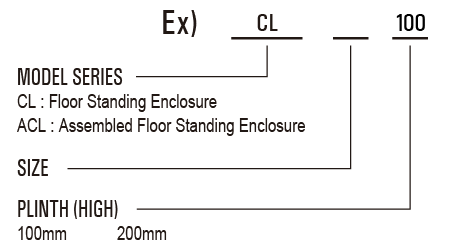

Classification models

    Meaning and classification models
    Note:
  • Optional of Canopy
  • Optional of plinth system

Feature

  • IP55 protection rating - more info on IP ratings
  • Symmetrical frame
  • Optional 100 or 200mm plinth system
  • Easy to assemble
  • Swap doors in minutes

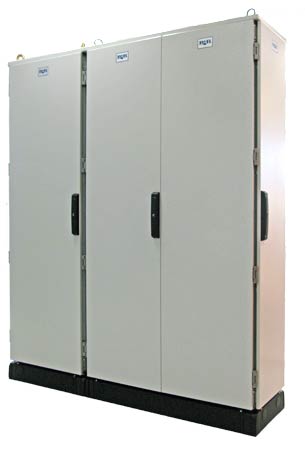

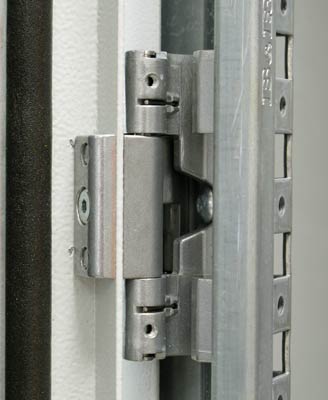

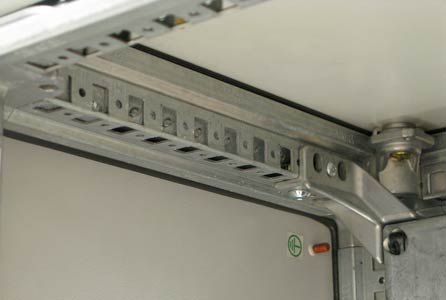

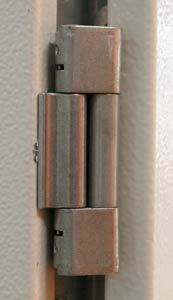

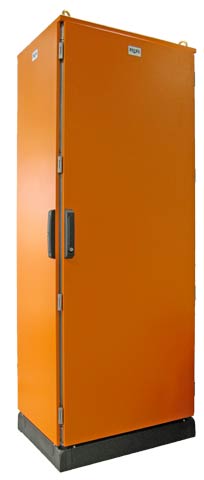

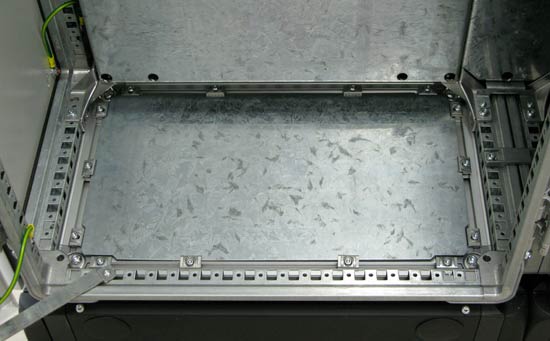

    Bayed cabinets Single cabinet with side door Rail system Hinge external Hinge internal Gland plate

References and details of enclosures

Dimension(mm) No. of door 1)Plinth 100mm H 1)Plinth 200mm H
Height
(H)		 Width
(W)		 Depth
(D)
1400 800 400 1 PL84/100 PL84/200
1400 1000 400 2 PL104/100 PL104/200
1600 800 400 1 PL84/100 PL84/200
1600 1000 400 2 PL104/100 PL104/200
1600 1200 400 2 PL124/100 PL124/200
1800 800 400 1 PL84/100 PL84/200
1800 1000 400 2 PL104/100 PL104/200
1800 1200 400 2 PL124/100 PL124/200
2000 800 400 1 PL84/100 PL84/200
2000 1000 400 2 PL104/100 PL104/200
2000 1200 400 2 PL124/100 PL124/200
    Note:
  • Other size can customization
  • 1) for Optional
