Brackets/ Support
S Series
Classification models
Step Brackets
Feature
- Variety of Color
- Variety of Screw M5, M6, M8, M10, M12
- Made of bulk molding compound, unsaturated polymer with fiber glass(BMC, DMC),
- Good electrical resistance, heat resistance, fire resistance, low shrinkage and water resistance properties
Technical Data
| S2-80 | ||
| S4-100 | S4-132 | S4-165 |
| S4-212 | S4-230 | S4-230S |
| S5-135 |
EL Series
Classification models

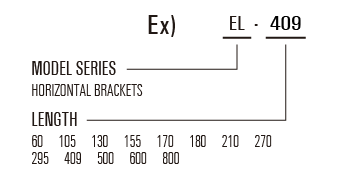

Horizontal Brackets
Feature
- Made of bulk molding compound, unsaturated polymer with fiber glass(BMC, DMC),
- Good electrical resistance, heat resistance, fire resistance, low shrinkage and water resistance properties
Technical Data

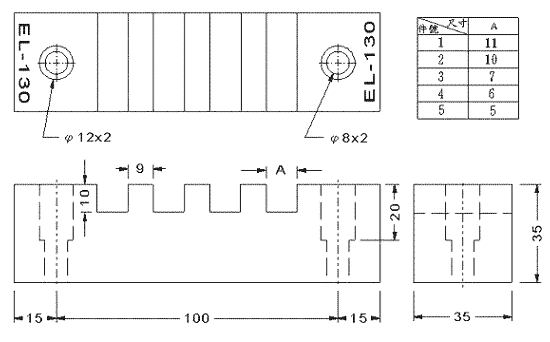

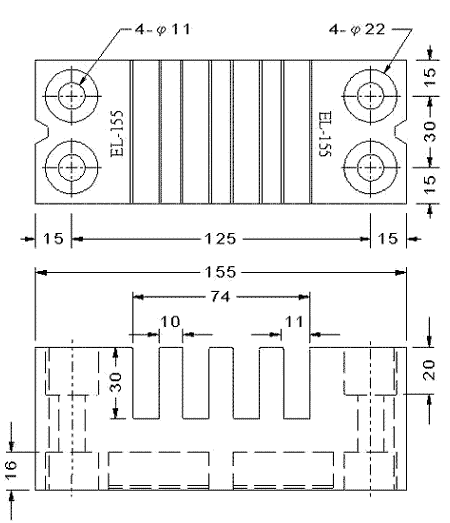

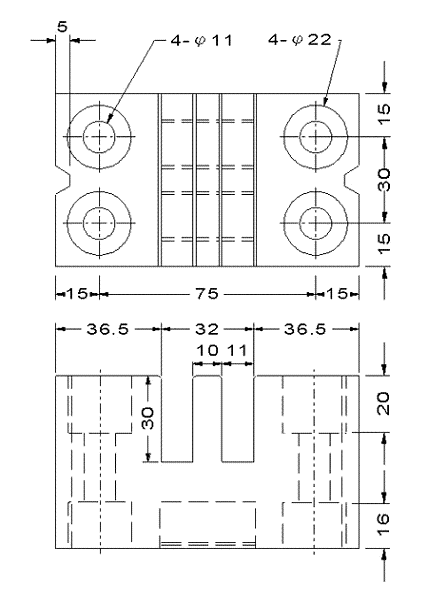

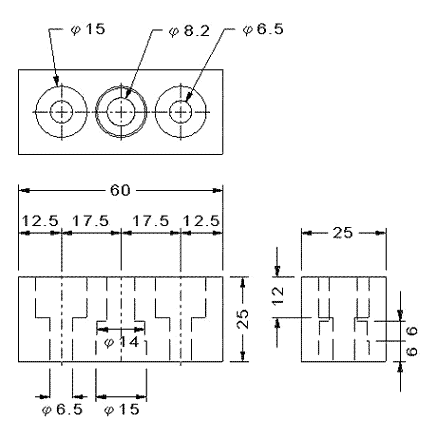

| EL-60 | EL-105 | EL-130 | EL-155 |

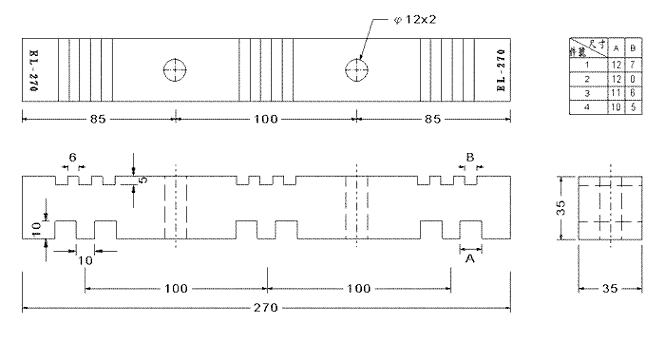

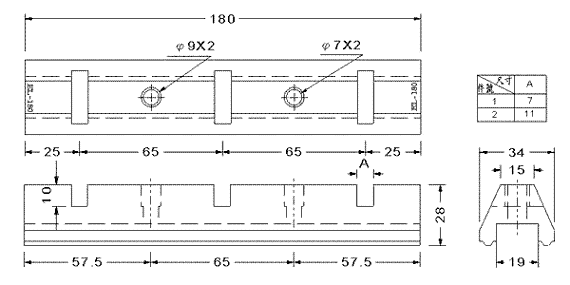

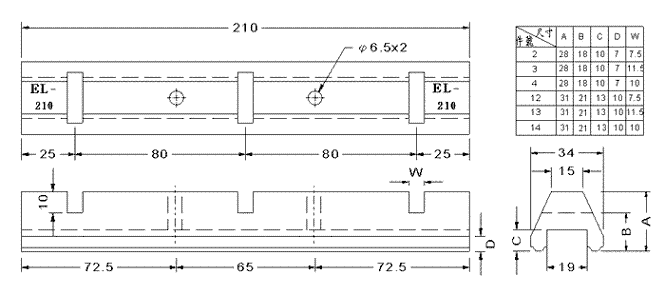

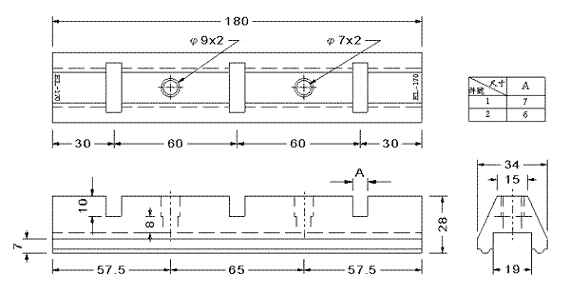

| EL-170 | EL-180 | EL-210 | EL-270 |

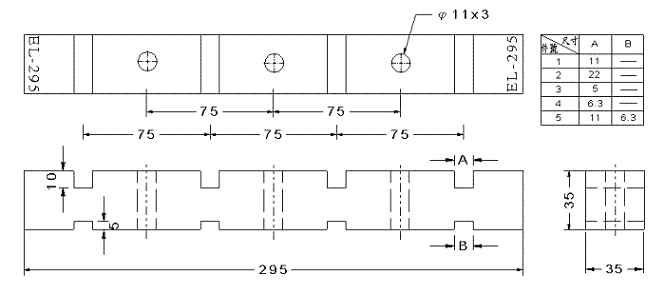

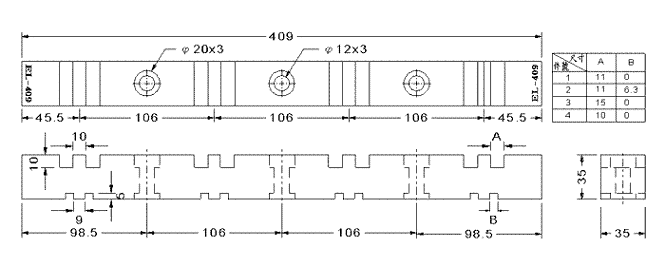

| EL-295 | EL-409 |
