Push Button Enclosures
XAL & XDL

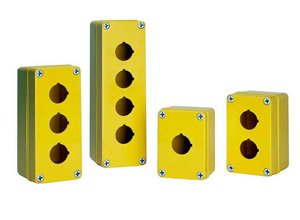

Pushbutton Enclosures
Features:
- Designed to house 30.5 and 22.5mm push buttons
- Available in 1-hole, 2-hole, 3-hole, 4-hole, and 5-hole configurations
- Cover and base are keyed to ensure proper installation
- Available in gray and yellow colors
- Horizontal or vertical mounting
- Yellow enclosures are suitable for e-stop applications requiring a yellow background and/or applications requiring higher visibility of the push button station
Protection:
- The standard is IP40 and some types can reach IP67 with the seal cover
Certificate

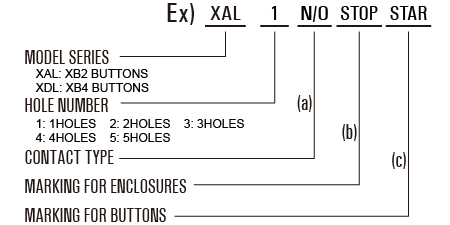

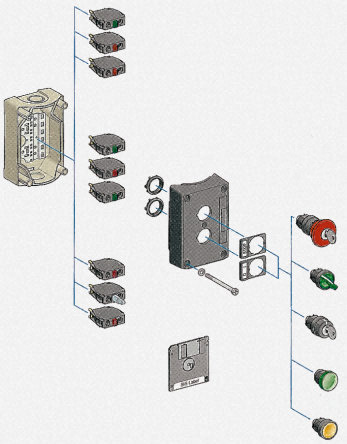

Composition & Order Code
 |
 |
a) Conact Type
O = N/O, C = N/C, OC = N/O + N/Cb) Marking for enclosures
Open, Close, Stop, Start, ○ or Ic) Marking for buttons
↑, ↓, ←, →, Ⅰ, Ⅱcan be customized.
The cover we can supply Grey and Yellow color
Technical Data
Technical Data
| Gasket | Silicone rubber | |
| Cover Screw | 4 x M4(Metalic) | |
| Hings and wall mounting | 2 holes at the bottom of base sized in Φ4.2 for mounting the enclosure | |
| Accessories mounting | Can be installed directly on the enclosure cover | |
| Material | PC | ABS |
| Temperature range | -50°C ~ 120°C | -40 ~ 80°C |
| Flame redardant | V2 | V0 |
| Protection | IP65 | |
Dimension
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |

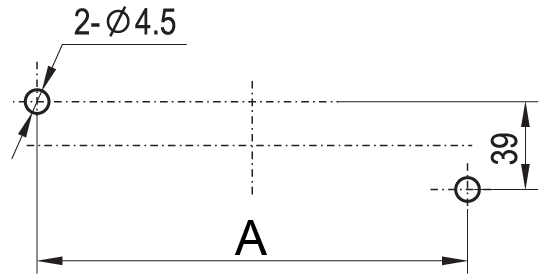

Mounting
 |

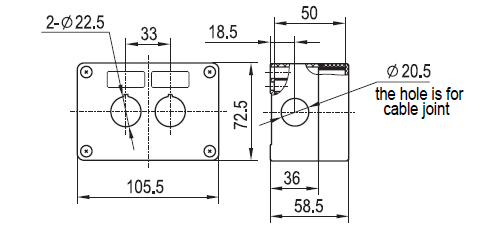

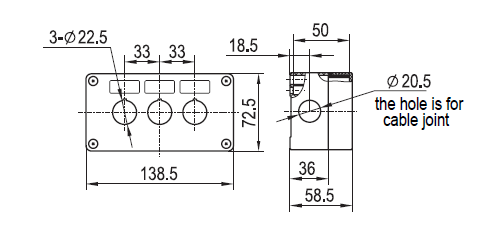

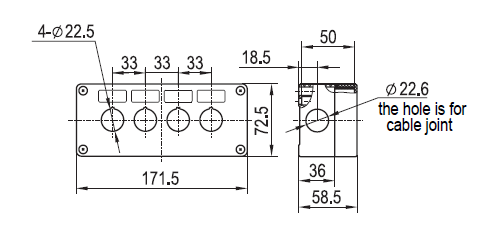

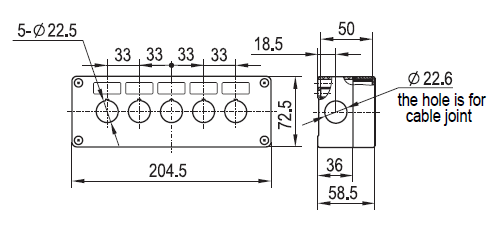

| Hole Number | Dimension(mm) |
| A | |
| 1 Hole | 59 |
| 2 Holes | 92 |
| 3 Holes | 125 |
| 4 Holes | 158 |
| 5 Holes | 191 |
