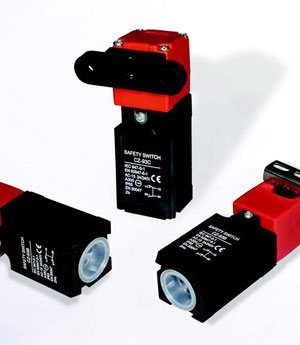

Safety key interlock switches operate by detecting the opening of guards such as doors and gates. When the gate is open and the safety interlock is disengaged, its positive opening contacts shut down.
Safety key interlock switches are available in any of three retention forces: 7 lbs. to perform consistently and reliably on average size doors and gates, 22 lbs. to hold very heavy doors closed, and 2 lbs. for light plexiglass covers and guards

Model Designations

Designation	Signal	Description
1. Type	CZ-93	Safety switch
2. Type of contact blocks fitted	B	2B (2NC)
	C	1A1B (NO-NC)
3. Conduit entries	PG	PG 13.5XP1.5
	PT	PT1/2X14UNC
4. Actuating keys	None	None

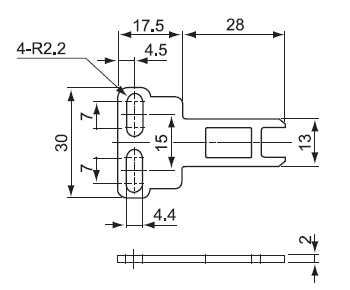

	01	Horizontal

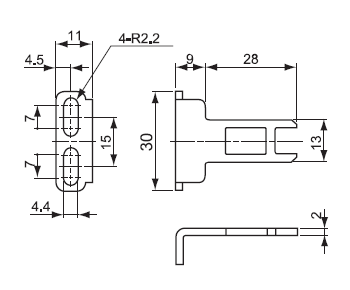

	02	Vertical

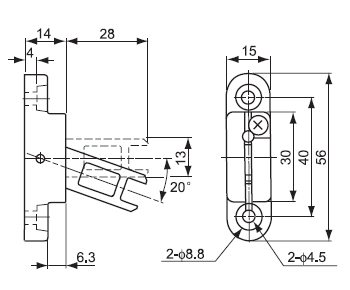

	03	Adjustable

>> Download PDF(274KB)

• Ratings

Rated Voltage (V)	Noninductive Load (A)				Inductive Load (A)
	Resistance Load		Lamp Load		Inductive Load		Motor Load
	NC	NO	NC	NO	NC	NO	NC	NO
125VAC 250VAC 400VAC	10 10 10		3 2 1.5	1.5 1 0.8	10 10 3		5 3 1.5	2.5 1.5 0.8
8VDC 14VDC 30VDC 125VDC 250VDC	10 10 6 0.8 0.4		6 6 4 0.2 0.1	3 3 3 0.2 0.1	10 10 6 0.8 0.4		6 6 4 0.2 0.1

• Characteristics

Rating	3A 240VAC (A300)
Operating speed	0.1m-0.5m/s
Operating frequency	30 operations/minute
Contact resistance	25mΩ max. (initial value)
Insulation resistance	100mΩ min. (at 500VDC)
Rated insulation voltage (UI)	400V
Dielectric strength	AC2500V/Umip 4KV
Vibration frequency	10-55HZ,1.5mm double amplitude
Shock	Mechanical: Approx. 1, 000m/Sec2 (about 100G'S) Electrical: Approx. 300m/Sec2 (about 30G'S)
Ambient temperature	-30℃ to +70℃
Humidity	<95% RH
Life	Mechanical: 10,000,000 operations above Electrical: 150,000 operations above
Degree of protection	IP65 (EN60947-5-1)
Short-circuit protective device	10A fuse
Weight	Approx. 76g

• Operating Characteristics

Key plug in force Max.	147.N(1,500gf)
Key pull out force Max.	29.42N(3,000gf)
Pretravel	6 ± 3mm
Total Travel	(28mm)
Force required to have positive Min.	58.84N (6,000gf)
Positive opening travel Min.	10mm

• Use attention affair

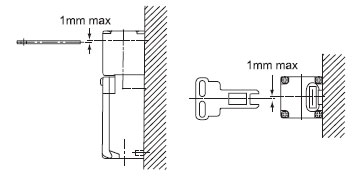

To prevent the wear and the space should be within 1mm between the key and middle of the insert hole.

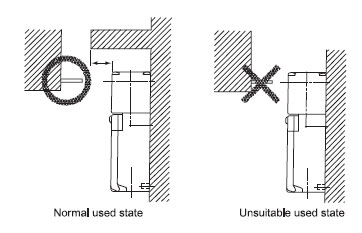

When in use,there should put a plate on the top to prevent the key overinsert.To prevent nonmovement ,the space between the plate and the switch should be under 3 mm.

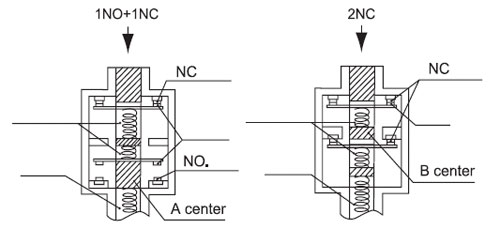

Required to have positive machine

When the contact block get fire,press on the middle of the key structure, the NC strict leaving structure can push the contact block a way cut off the movement.

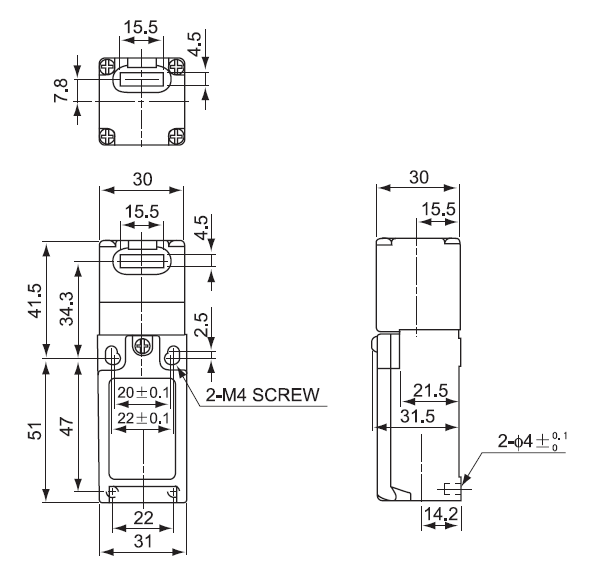

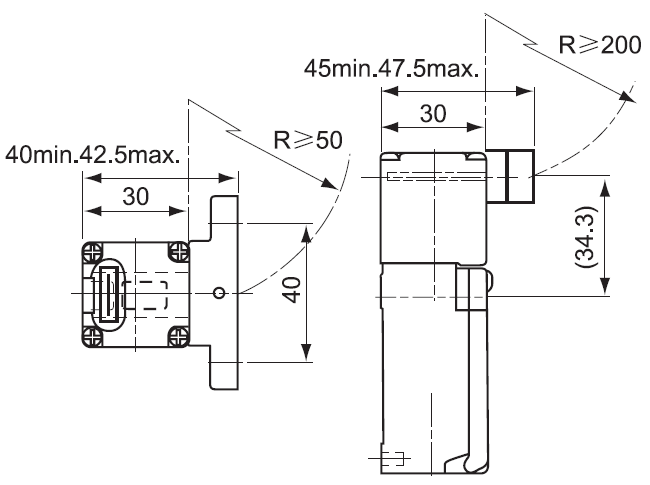

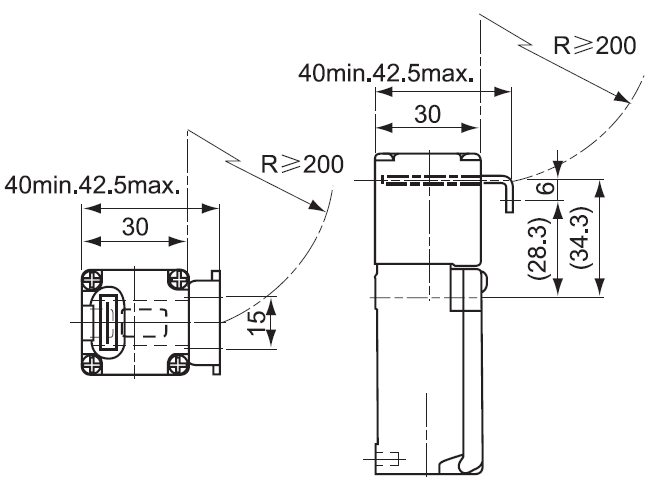

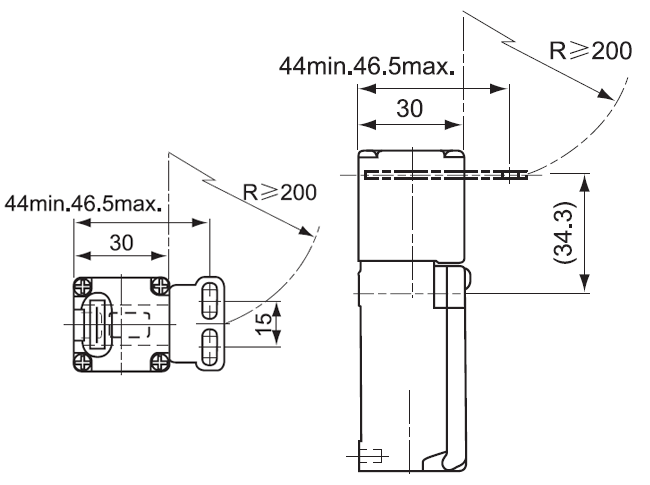

Appearance and Dimension

---

---

---

---

---

---
