Spiral Wrapping Bands

Spiral Wrapping Bands
  • Made from P.E. material. Excellent in insulation and binding strength.
  • Color: Standard in natural (black color is also available)

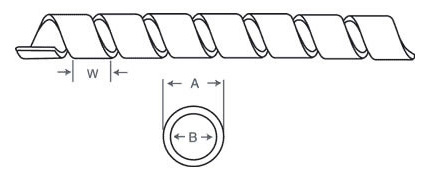

Item No. Dimension (mm) Wrapping Range
(mm)
Packing
B A W
SWB-03 1.5 3.0 4.0 1.5-10 10M/Roll
SWB-06 4 6 7.0 4-50
SWB-08 6 8 10.8 6-60
SWB-10 7.5 10 11.4 7.5-60
SWB-12 9 12 13.9 9-65
SWB-15 12 15 15.0 12-75
SWB-19 15 19 18.2 15-100
SWB-24 20 24 19.6 20-130
SWB-30 26 30 43.0 26-150
