HWF Terminal Block
HWF Terminal Block

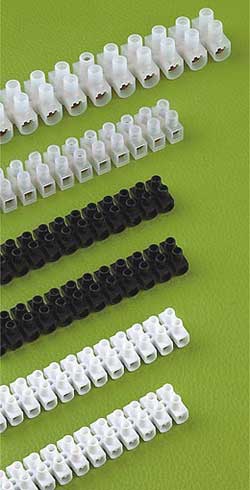

  • Wiring terminal block: H, U(W), V(F) series.
  • Material : PA, PE and PP
  • Color: creamy white, white and black . Special colors may be customized.
  • Application: for connecting terminals in such devices as electric distribution box, cabinet and disc.

Teachnical Data

Type Spec. and model External dimensions (mm) Packing
Series Rated
Current (A)		 Connecting
wire (mm2)		 Rated
Voltage (V)		 L A H M B
TBS-03 H 3 4 400 93 17 12 6 8 1000
U(W) 3 4 400 93 16 11 6 8 1000
TBS-06 H 6 6 400 113 19 15 6.5 10 1000
U(W) 6 6 400 112 16 14 6.5 10 1000
TBS-10 H 10 10 400 130 21 16.5 8.0 11.0 500
U(W) 10 10 400 126 20 15 8.3 10.5 500
TBS-16 H 15 12 400 139 22.5 18.5 8.0 12 500
U(W) 15 12 400 140 22.5 17.5 10.0 12 400
TBS-20 H 20 14 400 139 22.5 18.5 8.0 12 400
U(W) 20 14 400 140 22.5 17.5 8.3 12 400
TBS-30 H 30 16 400 168 26.0 20.0 11.0 14.0 400
U(W) 30 16 400 168 26.0 20.0 11.0 14.0 300
TBS-60 H 60 25 400 190 30 25.5 11.5 16.5 300
U(W) 60 25 400 191 30 24.0 13.5 16.5 200
TBS-80 H 80 35 400 205 38 27 15 17 200
U(W) 80 35 400 205 38 27 15 17 200
TBS-100 H 100 40 400 250 40 31 17 21 50
U(W) 100 40 400 250 40 31 17 21 50

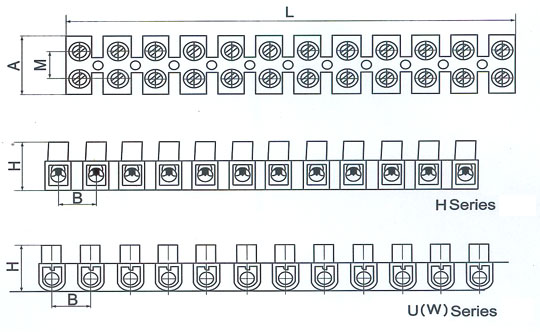

Dimensioned

Dimensioned

Top
