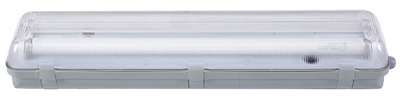

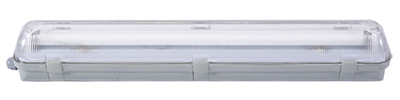

Waterproof, Dustproof and Moistureproof Fluorescent Lamp
T8B Series
Features:
Single Lamps 1x18W, 1x36W, 1x58W

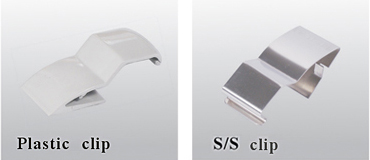

Double Lamps 2x18W, 2x36W, 2x58W- Body: Injection moulded,opaque UV stabilized polycarbonate body, waterproof gasket in natural silicon gel,with reinforcing ribs.Secure the gear tray by "T" shape rotated supports,with plastic gear tray holder connected to the body for easy installation and maintenance.Closing clips in polycarbonate or stainless steel.Vandal sroof,clips should be opened by tool,not by hand.
- Reflector: White-coated flat metal plate.
- Diffuser: Injection moulded,transparent UV stabilized polycarbonate diffuser,highly impact resistant,It features prismatic design with good anti-dazzling effect.
Characteristics
| Type | Lamps | Protection | Clip QTY. | Dimensions(mm) | QTY./CTN (PCS) |
Packing Szie (mm) |
|||
| L | W | H | LF | ||||||
| V3118B | 1x18W T8 G13 | IP65/ IK08 | 6 | 660 | 100 | 110 | 416 | 6 | 685x245x415 |
| V3136B | 1x36W T8 G13 | IP65/ IK08 | 10 | 1270 | 100 | 110 | 880 | 6 | 1295x245x315 |
| V3158B | 1x58W T8 G13 | IP65/ IK08 | 12 | 1570 | 100 | 110 | 1180 | 6 | 1595x245X315 |
| V3218B | 2x18W T8 G13 | IP65/ IK08 | 6 | 660 | 150 | 110 | 416 | 9 | 685x345x315 |
| V3236B | 2x36W T8 G13 | IP65/ IK08 | 10 | 1270 | 150 | 110 | 880 | 4 | 1295x345x215 |
| V3258B | 2x58W T8 G13 | IP65/ IK08 | 12 | 1570 | 150 | 110 | 1180 | 4 | 1595x345x215 |
Dimension
