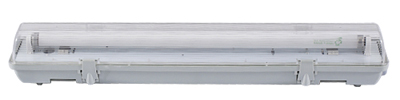

Waterproof, Dustproof and Moistureproof Fluorescent Lamp
T8F Series
Features:
Single Lamps 1x18W, 1x36W, 1x58W

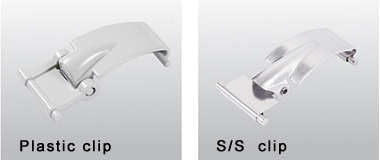

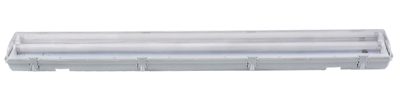

Double Lamps 2x18W, 2x36W, 2x58W- Body: Injection moulded,opaque UV stabilized polycarbonate body, rectangular shape,waterproof gasket in natural silicon gel,with reinforcing ribs.Secure the gear tray by "U" shape fixed supports,with plastic gear tray holder connected to the body for easy installation and maintenance of the electrical components.Closing clips in polycarbonate or stainless steel,two clips at both ends of one side of the diffuser can have the diffuser suspended once it opened.
- Reflector: White-coated flat metal plate.
- Diffuser: Injection moulded,transparent UV stabilized polycarbonate diffuser,highly impact resistant,It features averaged 4mm width line and stylish,fine grained frosted front planes.
Characteristics
| Type | Lamps | Protection | Clip QTY. | Dimensions(mm) | QTY./CTN (PCS) |
Packing Szie (mm) |
|||
| L | W | H | LF | ||||||
| V3118F | 1x18W T8 G13 | IP65/ IK08 | 4 | 670 | 102 | 110 | 480 | 12 | 690x323x340 |
| V3136F | 1x36W T8 G13 | IP65/ IK08 | 8 | 1274 | 102 | 110 | 890 | 6 | 1295x323x180 |
| V3158F | 1x58W T8 G13 | IP65/ IK08 | 12 | 1574 | 102 | 110 | 1000 | 6 | 1295x323x180 |
| V3218F | 2x18W T8 G13 | IP65/ IK08 | 4 | 670 | 162 | 110 | 480 | 8 | 690x340x340 |
| V3236F | 2x36W T8 G13 | IP65/ IK08 | 8 | 1274 | 162 | 110 | 890 | 4 | 1295x340x180 |
| V3258F | 2x58W T8 G13 | IP65/ IK08 | 12 | 1574 | 162 | 110 | 1000 | 4 | 1595x340x180 |
Dimension

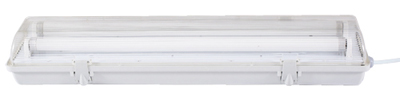

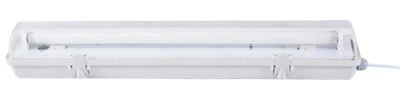

T8F GRP Series
Features:
Single Lamps 1x18W, 1x36W, 1x58W
Double Lamps 2x18W, 2x36W, 2x58W- Body: Press moulded,Glass-fiber Reinforced Polyester (GRP) body,non corrosive,rectangular shape,waterproof gasket in natural silicon gel.Secure the gear tray by "T" shape fixed supports,with plastic gear tray holder connected to the body for easy installation and maintenance of the electrical components.Closing clips in polycarbonate or stainless steel,two clips at both ends of one side of the diffuser can have the diffuser suspended once it's opened.
- Reflector: White-coated flat metal plate.
- Diffuser: Injection moulded,transparent UV stabilized polycarbonate diffuser, highly impact resistant,It features averaged 4mm width line and stylish,fine grained frosted front planes.
Characteristics
| Type | Lamps | Protection | Clip QTY. | Dimensions(mm) | QTY./CTN (PCS) |
Packing Szie (mm) |
|||
| L | W | H | LF | ||||||
| V3118FA | 1x18W T8 G13 | IP65/ IK08 | 4 | 671 | 104 | 105 | 230 | 9 | 690x335x350 |
| V3136FA | 1x36W T8 G13 | IP65/ IK08 | 8 | 1273 | 104 | 105 | 812 | 6 | 1295x335x240 |
| V3158FA | 1x58W T8 G13 | IP65/ IK08 | 12 | 1573 | 104 | 105 | 1132 | 6 | 1295x335x240 |
| V3218FA | 2x18W T8 G13 | IP65/ IK08 | 4 | 671 | 164 | 105 | 230 | 8 | 690x350x350 |
| V3236FA | 2x36W T8 G13 | IP65/ IK08 | 8 | 1273 | 164 | 105 | 812 | 4 | 1295x350x240 |
| V3258FA | 2x58W T8 G13 | IP65/ IK08 | 12 | 1573 | 164 | 105 | 1132 | 4 | 1295x350x240 |
Dimension
