Braided Wire

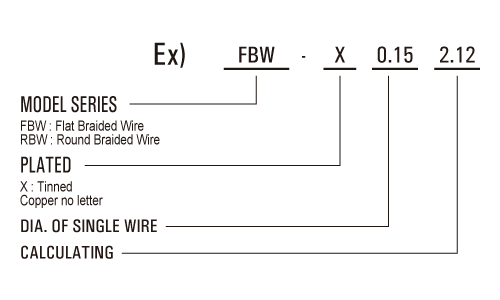

Order Code

Copper Braided Wire
Copper Braided Wire

Flat Braided Wire

Flat Braided Wire
Flat Braided Wire

Usage

  • The copper braided wire is used as flexible jointing write of electric appliance, switch appliance, electric stove and strage battery etc.
  • It also could be used as grounding wire in electrical working.

Technique Performance

  1. Copper braided wire adopts super-quality round copper wire or tining soft round copper wire to be braided in multiple-thread one layer or many layers.
  2. The DC electrical resistivity(20°C)of copper braided wire is lower than 0.022Ω .mm2/m, the DC electrical resistivity(20°C)of tining copper braided wire is lower than 0.234Ω .mm2/m.
  3. The technique standard of this product conforms with JB/T 6313.2-1992.
  4. Notes: If having special demand, customer please contact our corporation directly.
Structure
(mm) Number of strands×Wires×Layer/Single wire
Cross Section
(mm2)
Structure
(mm)
Dimension
(mm)
Calculating Weight
(Kg/km)
Standard CalculatingNumber of strands×Wires×Layer/Dia. of Single wire Width
Thickness
2 2.12 24x5x1/0.15 5.0 1.0 21.0
2.5 2.54 24×6×1/0.15 6.0 1.0 25.4
3.5 3.18 36x5x1/0.15 8.0 1.5 32.0
4 4.24 24×10×1/0.15 7.0 1.5 42.2
6 6.36 36×10×1/0.15 11 1.5 63.8
8 8.45 48×10×1/0.15 13.0 1.2 85.0
10 10.18 40×16×1/0.15 15 2.0 106.0
  10.60 48×12×1/0.15 16 1.5 102.0
12 12.72 48x15x1.0/0.15 18 1.8 128.0
16 16.96 48×20×1/0.15 22 2.0 170.0
20 21.20 48×25×1/0.15 25 2.0 212.5
25 25.45 48×30×1/0.15 28 3.0 254.0
  25.45 48×15×2/0.15 20 3.5 254.0
35 33.93 64×30×1/0.15 40 2.2 340.0
  33.93 48×20×2/0.15 26 3.2 340.0
50 50.87 64×45×1/0.15 50 3.0 510.0
  50.87 48×30×2/0.15 30 3.2 510.0
  50.89 48×20×3/0.15 28 4.8 510.0
75 76.34 80x54x1/0.15 32 3.5 765.0
  76.34 48×30×3/0.15 36 5.0 765.0
95 95.0 48×28×4/0.15 35 6.0 950.0
100 100.09 96x59x1/0.15 80 4.0 1000.0
120 127.23 48×30×5/0.15 42 7.0 1271.80

Top

Round Braided Wire

Round Braided Wire
Round Braided Wire
Round Braided Wire
Round Braided Wire

Usage

  • The copper braided wire is used as flexible jointing write of electric appliance, switch appliance, electric stove and strage battery etc.
  • It also could be used as grounding wire in electrical working.

Technique Performance

  1. Copper braided wire adopts super-quality round copper wire or tining soft round copper wire to be braided in multiple-thread one layer or many layers.
  2. The DC electrical resistivity(20°C)of copper braided wire is lower than 0.022Ω .mm2/m, the DC electrical resistivity(20°C)of tining copper braided wire is lower than 0.234Ω .mm2/m.
  3. The technique standard of this product conforms with JB/T 6313.2-1992.
  4. Notes: If having special demand, customer please contact our corporation directly.
Structure
(mm) Number of strands×Wires×Layer/Single wire
Cross Section
(mm2)
Structure
(mm)
Calculating Outer
Dimension (mm)
Calculating Weight
(Kg/km)
Standard CalculatingNumber of strands×Wires×Layer/Single wire
2.5 2.60 7x21/0.15 2.2 25
4 3.96 7x32/0.15 3.2 38
6 6.31 7x51/0.15 3.7 61
8 7.67 7x62/0.15 4.1 74
10 10.01 7x81/0.15 4.5 95
12 12.09 12x57/0.15 5.0 115
16 15.95 7x3x43/0.15 6.5 152
20 20.40 7x3x55/0.15 7.8 195
25 24.85 7x3x67/0.15 8.5 237
35 34.87 7x3x94/0.15 9.8 332
50 50.34 19x3x50/0.15 12.0 479
70 70.47 19x3x70/0.15 15.0 670
95 94.64 19x3x94/0.15 16.5 900
100 100.20 18x3x105/0.15 18.0 952
105 105.76 19x3x105/0.15 18.5 1005
110 111.33 20x3x105/0.15 19.0 1058
115 116.90 21x3x105/0.15 19.5 1111
120 117.46 19x5x70/0.15 20.0 1117
160 159.49 19x19x25/0.15 22.0 1517
185 185.00 19x19x29/0.15 23.0 1760
200 196.15 37x12x25/0.15 26.0 1866
250 251.08 37x12x32/0.15 29.0 2388
315 310.58 37x19x25/0.15 31.0 2954
400 397.54 37x19x32/0.15 34.0 3782
500 496.92 37x19x40/0.15 38.0 4727

Top
