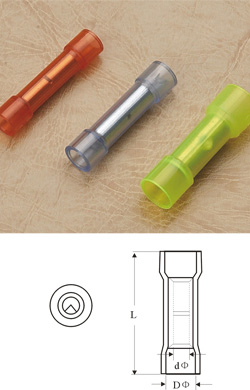

Long Full-insulating Middle Joint (Nylon)
26-22 A.W.G: 9A
22-16A.W.G: 19A
16-14A.W.G: 27A
12-10A.W.G: 48A
105℃ Ui=600V NYLON
| Item No. | Dimension(mm) | A.W.G mm2 | Color | ||
| L | DФ | CФ | |||
| BNY 1.25 | 27.3 | 3.2 | 1.7 | 22-16 A.W.G 0.5-1.5mm2 | Red |
| BNY 2 | 27.3 | 3.8 | 2.3 | 16-14 A.W.G 1.5-2.5mm2 | Blue |
| BNY 5.5 | 27.3 | 5.3 | 3.4 | 12-10 A.W.G 4-6mm2 | Yellow |
