Modular Distribution Box

LGD

Home
WE SeriesTSM
LGDLGD
HAGHAG
ZY, ABCZY, ABC
HA, HK, HTHA, HT, HK

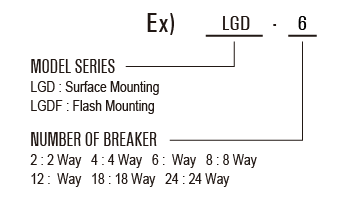

Order Code

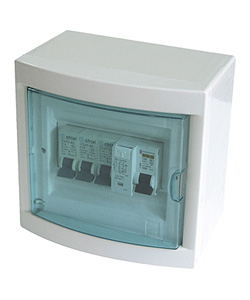

Surface Mounting
Surface Mounting

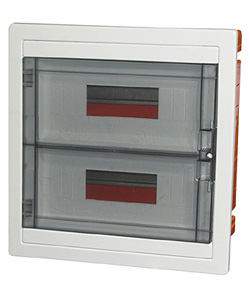

Flush Mounting
Flush Mounting
    Order Code
    Note: Surface Mounting Modular Distribution Box Max. 6way

Technical Data

Surface Mounting

Type Dimension(mm)
L W H
LGD-2 100 140 95
LGD-4 135 140 95
LGD-6 170 170 95

Flush Mounting

Type Dimension(mm)
L W H
LGDF-3 115 138 75
LGDF-6 180 155 90
LGDF-8 190 220 90
LGDF-12 298 198 100
LGDF-18 415 212 90
LGDF-24 300 323 90

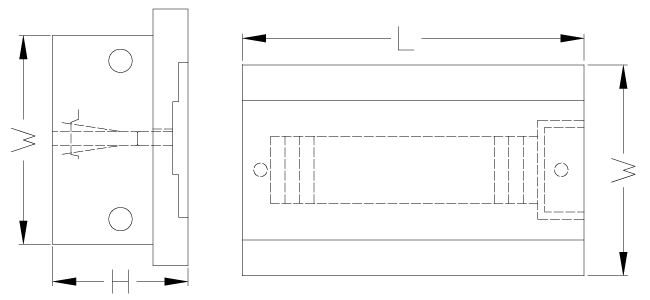

Dimensioned

Dimension
