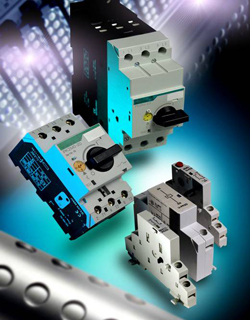

PKZM0

Application:

• PKZM0 Motor Protective Circuit Breaker is applicable for the circuit of AC 50/60Hz, rated insulation voltage 750V, rated operating voltage up to 660V, rated operating current from 0.1A to 25A. It is used for protecting the motor against overload, short-circuit and phase-failure. It can be also used for starting and breaking the starter of motor and for the circuit protection in the circuit of 25A

• Compact design
• screw or DIN rail mounting
• Standard breaking capacity
• Thermal and electromagnetic trip
• Rated operational current up to 25A
• Switching capacity 150/50kA/415V
• Short-circuit release, fixed setting to 14Xlu
• Single-phasing sensitive
• With screws or spring loaded terminals
• Comply with IEC/EN60947

Technical Data

Power of controlled motor 400V P(Kw)	Rated operating current 400Vle(A)	Range of overload tripping current Ir (A)	Switching capacity 400V Iq(KA)
-	0.16	0.1 ~ 0.16	100
0.06	0.25	0.16 ~ 0.25	100
0.09	0.4	0.25 ~ 0.4	100
0.12	0.63	0.4 ~ 0.63	100
0.25	1	0.63 ~ 1	100
0.55	1.6	1 ~ 1.6	100
0.75	2.5	1.6 ~ 2.5	100
1.5	4	2.5 ~ 4	100
2.2	6.3	4 ~ 6.3	100
3	6.6	6.3 ~ 10	100
4	10	6.3 ~ 10	100
5.5	16	10 ~ 16	50
7.5	16	10 ~ 16	50
9	20	16 ~ 20	50
12.5	25	20 ~ 25	50

Overall and Mounting Dimensioned Chart
