Feature:

• Moter Siren with the external diameter of 80/100mm which makes the output of 40W sound volume.
• Suitable for warning information of small hoist, light transfer cars and the inside of small vessel.
• Body Standard Color: RED
• Material: STEEL & ABS
• Insulation Resistance: 100mΩ(at 500 VDC)
• Dielectric Strength: 500VAC, 50/60Hz in 1 minute
• Protection Class: IP44

MS-190

MS-190

Technical Data

Model	Voltage	Current (A)	Frequency (Hz)	Decibel (db)	Packing Size	QTY.	Weight
MS-190	DC12V	6.00	50/60	114dB	44.5*23*48 cm	40pcs	16kg
	DC24V	2.50	50/60	114dB			16kg
	AC110V	0.90	50/60	114dB			22kg
	AC220V	0.43	50/60	114dB			22kg

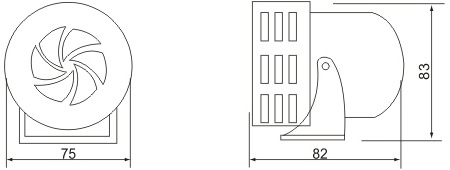

Dimensioned

MS-190

MS-290A & B

MS-290

Technical Data

Model	Voltage	Current (A)	Frequency (Hz)	Decibel (db)	Packing Size	QTY.	Weight
MS-290	DC12V	5.80	60	116	53.5*34*41.5 cm	24pcs	16kg
	DC24V	2.10	60	116			16kg
	AC110V	1.60	60	116			22kg
	AC220V	0.80	60	116			22kg

MS-290A for Plastic body, MS-290B for Metal body

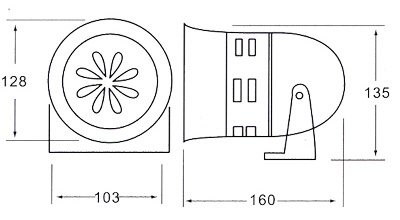

Dimensioned

MS-290

MS-390

MS-390

Technical Data

Model	Voltage	Current (A)	Frequency (Hz)	Decibel (db)	Packing Size	QTY.	Weight
MS-390	DC12V	12.4	50/ 60	125	50*41*34cm	10pcs	16kg
	DC24V	6.8	50/ 60	125			16kg
	AC110V	1.5	50/ 60	125			22kg
	AC220V	1.0	50/ 60	125			22kg

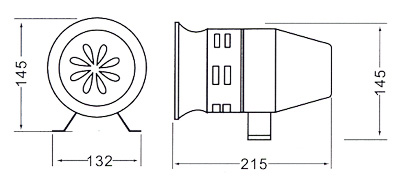

Dimensioned

MS-390

MS-490, 590, 690, 790

MS-490 & 590

MS-690 & 790

Technical Data

Model	Voltage	Current (A)	Frequency (Hz)	Decibel (db)	Packing Size	QTY.	Weight
MS-490	AC110V	3.4	50/ 60	150	44.5*38.0*22cm	6pcs	16kgs
	AC220V	1.6	50/ 60	150			22kgs

Model	Voltage	Current (A)	Frequency (Hz)	Decibel (db)	Packing Size	QTY.	Weight
MS-590	AC110V	3.6	50/ 60	160	35*30.5*42.5cm	4pcs	16kgs
	AC220V	1.8	50/ 60	160			22kgs

Model	Voltage	Current (A)	Frequency (Hz)	Decibel (db)	Packing Size	QTY.	Weight
MS-690	AC110V	4.0	50/ 60	170	35*30.5*42.5cm	2pcs	22kgs
	AC220V	2.0	50/ 60	170			22kgs

Model	Voltage	Current (A)	Frequency (Hz)	Decibel (db)	Packing Size	QTY.	Weight
MS-790	AC110V	4.1	50/ 60	150	35*30.5*42.5cm	6pcs	16kg
	AC220V	2.2	50/ 60	150			22kg

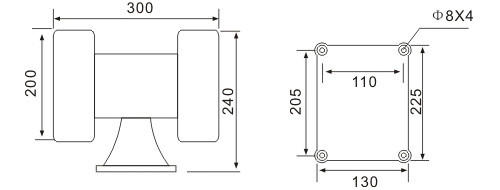

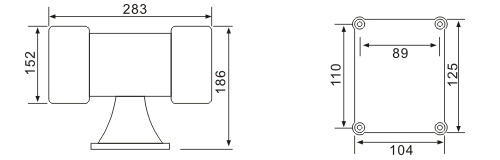

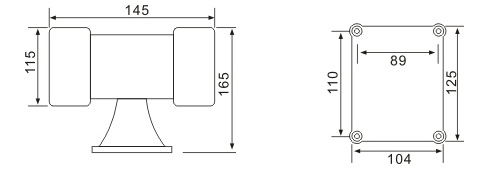

Dimensioned

490

590

690

790
