Phase Reversal Relay

Home

APR-3

APR-3
APR-3

Technical Data

Classification REV, Preventing Relay
Model APR-3
Dimensions 50H×40W×58D
Mounting & Socker Surface(-N) PF085A, PF083A(E)
Flush(-Y) P3G-08, US-08
Functions Protecting threepphase induction motor reverse relay
220V sourece with surece with surge absorber and high voltage protecting
Rated Voltage AC(V): 220,240,380,415,440,50/60Hz
Indicator Operating --
O/P Contact Model APR-3
Time Limit 10A
Life
Mechanical 5×106times
Electrical 105times
Setting Error --
Reset Time --
Consumed Power 2VA
Ambient Temperature -10℃~+55℃
Ambent Huminity 45~85%RH
Weight 90g

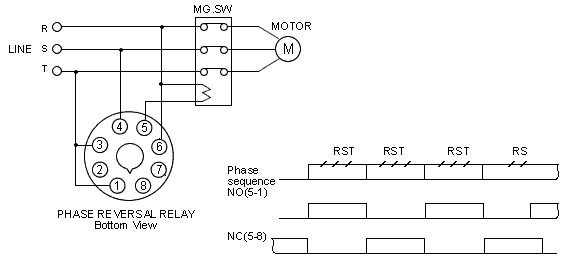

Connection Diagrams & Timing Chart 35A

Connection Diagrams & Timing Chart

Dimension
APR-3
