Hydraulic Hand Pump

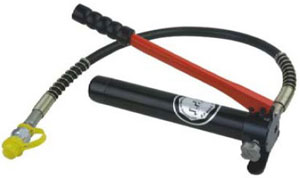

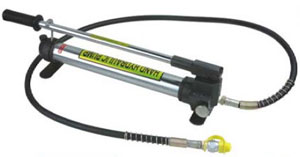

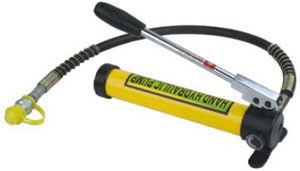

CP-180B CP-180 CP-630
CP-180B CP-180 CP-630

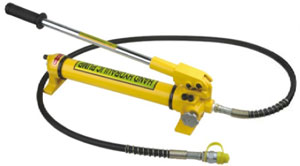

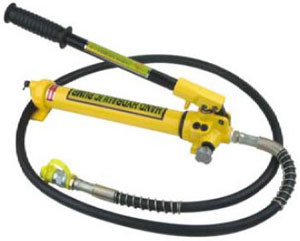

CP-390 CP-700
CP-390 CP-700

Technical Data

Item. No. Type Max. Output Pressure Capacity of Oil Output of the oil Direction of piston Weight Measurement
(LXWXH)
Low pressure High pressure Low pressure High pressure
CP-180 Hand / 700kg/cm2 350cc / / / approx.4.45kg /
CP-180B Hand / 700kg/cm2 350CC / 1.8CC single approx.6kg 350x120x130mm
CP-390 Hand 20kg/cm2 700kg/cm2 480cc 10cc 1.8cc double approx.4.6kg 400x105x155mm
CP-630 Hand 20kg/cm2 700kg/cm2 1100cc 13cc 2.3cc double approx.10kg 510x140x150mm
CP-700 Hand 20kg/cm2 700kg/cm2 900cc 13cc 2.3cc double approx.9kg 510x140x150mm

Top

Hydraulic Foot Pump

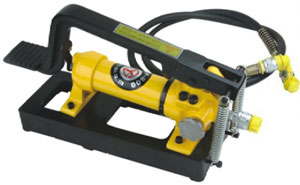

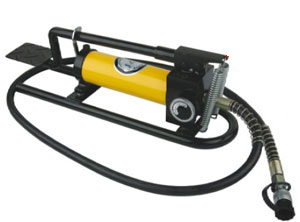

CFP-800 TFP-800
CFP-800 TFP-800

Technical Data

Item. No. Type Max. Output Pressure Capacity of Oil Output of the oil Direction of piston Weight Measurement
(LXWXH)
Low pressure High pressure Low pressure High pressure
CFP-800 Foot 20kg/cm2 700kg/cm2 850cc 13cc 2.3cc double approx.8kg 450x150x200mm
TFP-800 Foot 20kg/cm2 700kg/cm2 700cc 13cc 2.3cc double approx.9kg 450x150x200mm

Top

Electric Pump

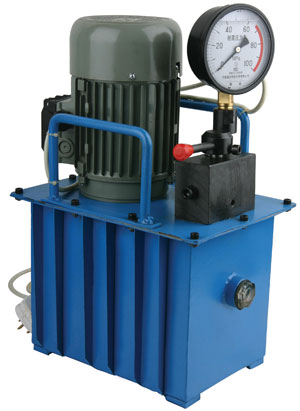

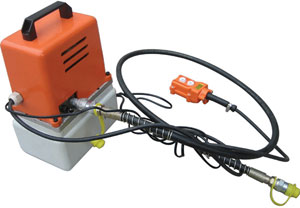

ZCB6-5 TEP-25A
ZCB6-5 TEP-25A

Technical Data

Item. No. Rated output Moto Voltage Rated pressure Capacity Weight Hight
High Low High Low
ZCB6-5 0.75kw 220V/380V 63Mpa 2.5Mpa 0.8L/min 5L/min approx.30kg Approx. 470mm
TFP-800 450w 220V/380V 700kg/cm2(10,000ps) 2Mpa 0.5L/min 3L/min approx.30kg Approx. 470mm

Top
