Thermal Overload Relay

LR1-D

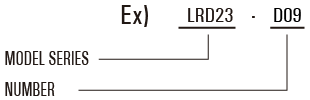

Model Reference

LRD13LRD13
LRD23LRD23
LRD33LRD33
    Model Reference

Application

  • LRD series thermal relay is suitable for using in the circuits rated voltage up to 660V, ratedcurrent 93A AC 50/60Hz, for over-current protection of AC motor.
  • The relay has the differentialmechanism and temperature compensation and can plug in LC1-D series AC contactor. Theproduct conforms to IEC60947-4-1 stardand.

Motion Characteristic: Three-phase Balance Motion Time

No Times of the setting current Motion time Start conidition Ambient temperature
1 1.05 >2h Cold state 20±5°C
2 1.2 <2h Heat state (Following the No.1 test)
3 1.5 <4min
4 7.2 10A 2s<Tp≤10s ≤63A Cold state
10 4s<Tp≤10s >63A

Phase-losing Motion Characteristic

No Times of the setting current Motion time Start condition Ambient temperature
Any two phases Another phase
1 1.0 0.9 >2h Cold state 20±5oC
2 1.15 0 <2h Heat state(Following the No.1 test)

Technical Data

Type Number Setting range (A) Applied Contactor
LRD13 D01 0.10~0.16 LC1-D-09~38
D02 0.16~0.25 LC1-D-09~38
D03 0.25~0.40 LC1-D-09~38
D04 0.40~0.63 LC1-D-09~38
D05 0.63~1 LC1-D-09~38
D06 1~1.7 LC1-D-09~38
D07 1.6~2.5 LC1-D-09~38
D08 2.5~4 LC1-D-09~38
D10 4~6 LC1-D-09~38
D12 5.5~8 LC1-D-09~38
D14 7~10 LC1-D-09~38
D16 9~13 LC1-D-09~38
D21 12~18 LC1-D-09~38
D22 16~24 LC1-D-09~38
D35 30~38 LC1-D-09~38
LRD23 2353 23~32 LC1-D-25~32
2355 30~40 LC1-D-25~32
LRD33 3322 17~25 LC1-D-40~95
3353 23~32 LC1-D-40~95
3355 30~40 LC1-D-40~95
3357 37~50 LC1-D-50~95
3359 48~65 LC1-D-50~95
3361 55~70 LC1-D-65~95
3363 63~80 LC1-D-65~95
3365 80~93 LC1-D-95

Dimensioned

Dimensioned Dimensioned Dimensioned Dimensioned Dimensioned
Dimensioned Dimensioned Dimensioned Dimensioned Dimensioned
LRD13
Dimensioned Dimensioned Dimensioned Dimensioned Dimensioned
Dimensioned Dimensioned Dimensioned Dimensioned Dimensioned
LRD23
Dimensioned Dimensioned Dimensioned Dimensioned Dimensioned
Dimensioned Dimensioned Dimensioned Dimensioned Dimensioned
LRD33
