Copper Tuber Terminal Crimping Tools
HX Series
HX Series
Features:
- The crimping tools is used for non-welding and standard electrical connection.
- The mould of the crimping month is made of SCM-40 hardest tool steel.
- It is with the characteristics of long life, accurate bore diameter and good crimping effect.
Technical Data
| Model | Range of Application | Capacity (mm2) |
Length (mm) |
Weight (kgs) |

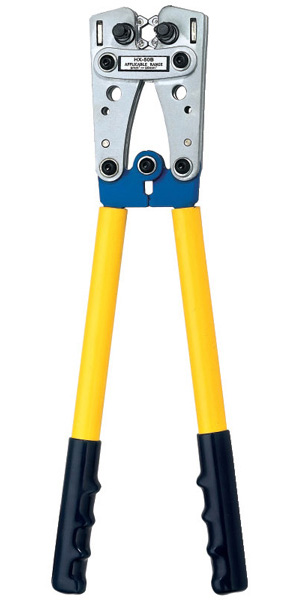

| HX-50B | BS Standard type terminal | 6.0~50 | 390 | 1.3 |
| HX-50SC | For SC cable lug | 6.0~50 | 390 | 1.3 |
| HX-50D | For DIN46235 copper terminal | 6.0~50 | 390 | 1.3 |

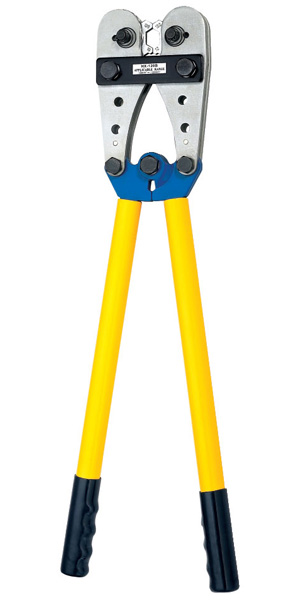

| HX-120A | DIN48201 Aluminum conductor | 10~120 | 620 | 4.0 |
| HX-120B | BS Standard type terminal | 10~120 | 620 | 4.0 |
| HX-120D | For DIN46235 copper terminal | 10~120 | 620 | 4.0 |
| HX-120M | For SC cable lug | 10~120 | 620 | 4.0 |
| HX-150B | BS Standard type terminal | 25~150 | 620 | 4.0 |
| HX-150SC | For SC cable lug | 25~150 | 620 | 4.0 |
| HX-245B | BS Standard type terminal | 70~240 | 980 | 5.6 |
CT Series
CT Series
Features:
- The CT Series is applicable for non-welding crimping complied with standard electical connection.
- The material for mouth mould is accurate SK-5 tool steel for long shelf life. Adjust the jaw diameter according to the sizes of terminals.
Technical Data
| Model | Range of Application | Capacity (mm2) |
AWG | Length (mm) |
Weight (kgs) |

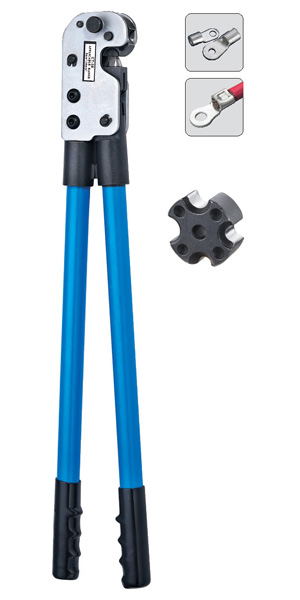

| CT-38 | Y.O Terminal | 8~38 | 8-2 | 570 | 2.2 |

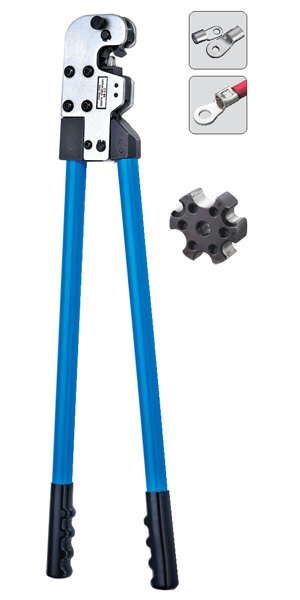

| CT-80 | 8~95 | 8-3/0 | 635 | 3.2 | |

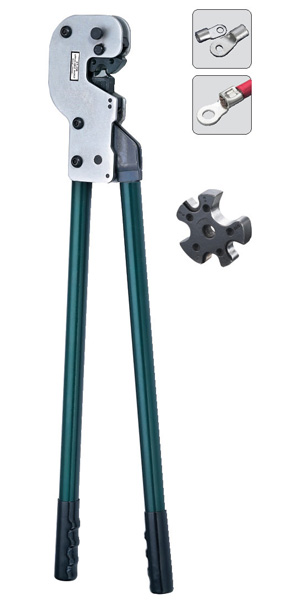

| CT-150 | 16~150 | 8-250/300MCM | 765 | 5.2 |
