European Stype Crimping Tools

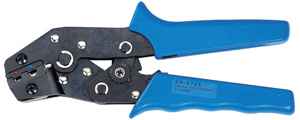

SN Series
European Stype Crimping Tools
European Stype Crimping Tools
Features:
- The components of the ratchet crimping tools are made of special steel.
- Designed according to human factors engineering, it can save 50% energy when crimping.
- Precise crimping die sets and integral lock with self-releasing mechanism ensure high-quality crimping effect after crimping repeatedly.
- Accurate adjustment before ex-works delivers.
- Due to best handle grasping position, light and compact structure and handle design ensure perfect crimping effect.
Technical Data
| Model | Range of Application | Capacity (mm2) |
AWG | Length (mm) |
Weight (kgs) |

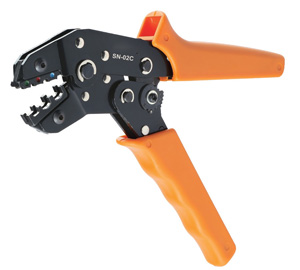

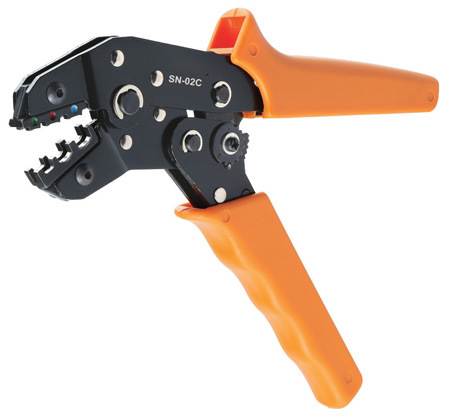

| SN-02C |  Insulated Terminal |
0.25~2.5 | 22-14 | 190 | 0.37 |

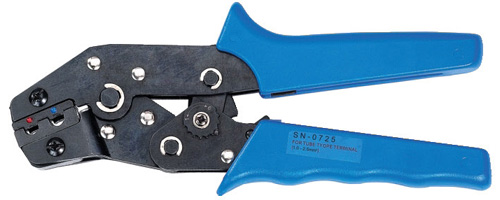

| SN-0725 | 0.5~2.5 | 20-14 | 190 | 0.37 | |
| SN-02WF |  Cord End Terminals |
0.14~2.5 | 28-14 | 190 | 0.37 |

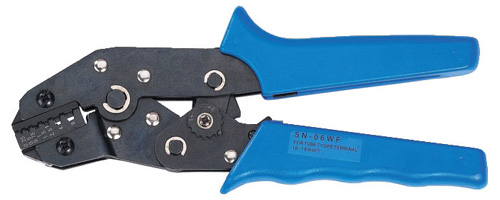

| SN-05WF | 0.5~6.0 | 20-10 | 190 | 0.37 | |

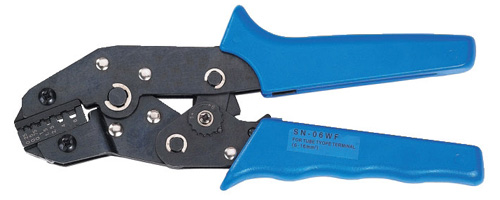

| SN-06WF | 0.25~6.0 | 24-10 | 190 | 0.37 | |

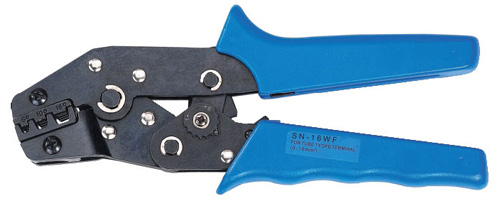

| SN-16WF | 6~16 | 10-6 | 190 | 0.37 | |

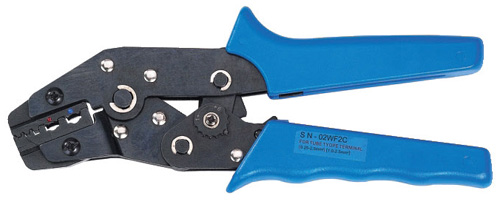

| SN-02WF2C | Cord End Terminals Insulated Termianls |
0.5~2.5 | 20-14 | 190 | 0.37 |

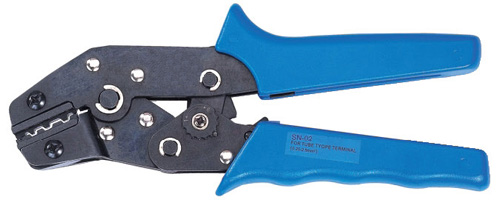

| SN-02 |  Non-Insulated Terminal |
0.25~2.5 | 24-14 | 190 | 0.37 |
| SN-0325 | 0.75-2.5 | 20-14 | 190 | 0.37 | |
| SN-02B |  Non-Insulated Terminal |
0.25~1.5 | 26-18 | 190 | 0.37 |

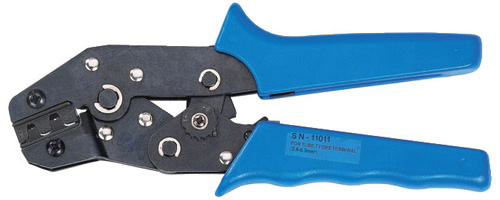

| SN-11011 | 0.5~2.5 | 20-14 | 190 | 0.37 |

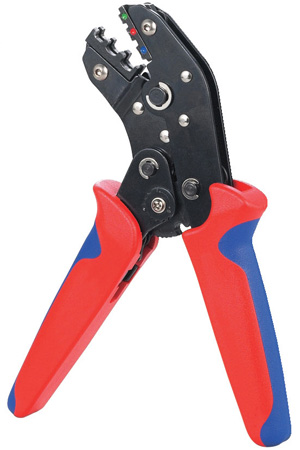

SNA Series
European Stype Crimping Tools
Features:
- The components of the ratchet crimping tools are made of special steel.
- Designed according to human factors engineering, it can save 50% energy when crimping.
- Precise crimping die sets and integral lock with self-releasing mechanism ensure high-quality crimping effect after crimping repeatedly.
- Accurate adjustment before ex-works delivers.
- Due to best handle grasping position, light and compact structure and handle design ensure perfect crimping effect.
Technical Data
| Model | Range of Application | Capacity (mm2) |
AWG | Length (mm) |
Weight (kgs) |
| SNA-02C | Insulated Terminal |
0.25~2.5 | 22-14 | 190 | 0.37 |

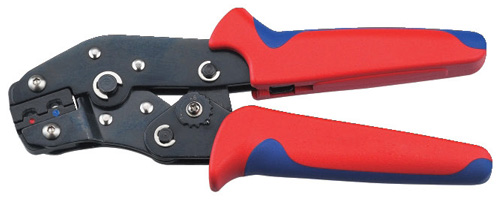

| SNA-0725 | 0.5~2.5 | 20-14 | 190 | 0.37 | |

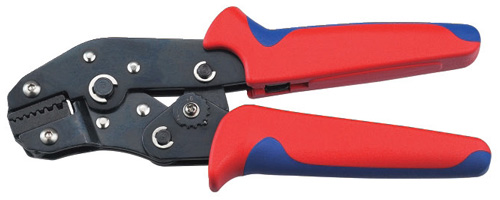

| SNA-02WF | Cord End Terminals |
0.14~2.5 | 28-14 | 190 | 0.37 |

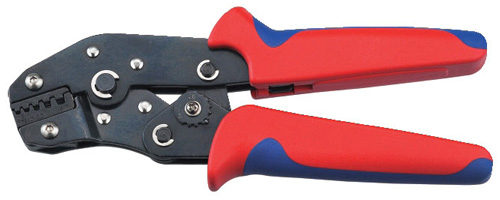

| SNA-05WF | 0.5~6.0 | 20-10 | 190 | 0.37 | |

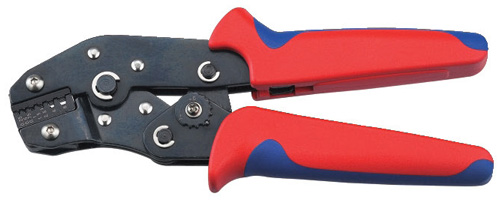

| SNA-06WF | 0.25~6.0 | 24-10 | 190 | 0.37 | |

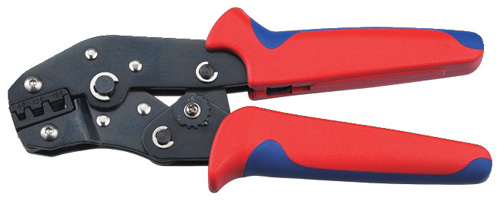

| SNA-16WF | 6~16 | 10-6 | 190 | 0.37 | |

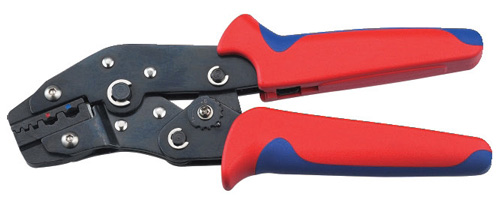

| SNA-02WF2C | Cord End Terminals Insulated Termianls |
0.5~2.5 | 20-14 | 190 | 0.37 |

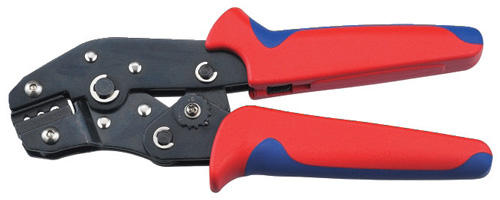

| SNA-02 | Non-Insulated Terminal |
0.25~2.5 | 24-14 | 190 | 0.37 |

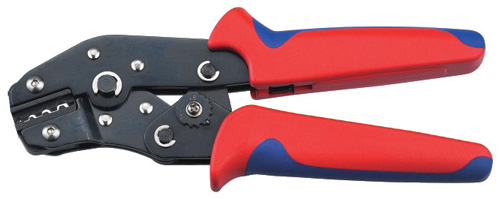

| SNA-0325 | 0.75-2.5 | 20-14 | 190 | 0.37 | |

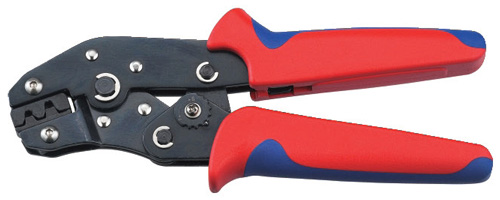

| SNA-02B | Non-Insulated Terminal |
0.25~1.5 | 26-18 | 190 | 0.37 |
| SNA-11011 | 0.5~2.5 | 20-14 | 190 | 0.37 |
