Fuse Bases For Square Pipe Fuses With Knife Contacts

Applications

• Supporters for NH000-NH4 fuses of all kinds (gG, aM, aR) in electric lines (type gG), capable of working under the heat caused by rated current and prospective short-circuit impacting current up to 120KA.
• Rated insulate voltage up to 660V; Working frequency 50HzAC; Rated current 1000A. Compliant with GB13539 and IEC269.

Design Features

• The bases are made up of high-density ceramic, heat-resistant resin board and wedge-shaped static contacts in a open structure. The product is featured with good heat sinking, high mechanic density, reliable connection and simple operation. It is available for all NH000~NH4 fuses.

Table 1

Models	Fuse Link models	Rated insulation voltage (V)	Conventional free air themal current (A)	Dimensions/ Sizes(mm)	Weight (g)
				Fig.

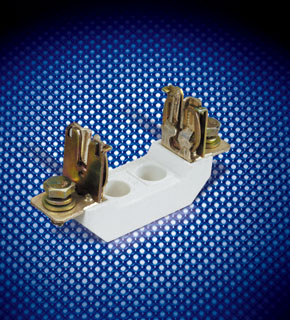

NT00	NH000, NH00	660	160	Figure 1	193

Table 2

Models	Fuse Link models	Rated insulation voltage (V)	Conventional free air themal current (A)	Dimensions/ Sizes(mm)	Weight (g)
				Fig.

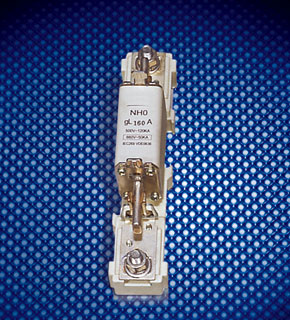

NT0	NH0	660	160	Figure 2	295

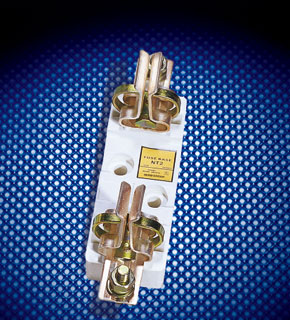

Table 3

Models	Fuse Link models	Rated insulation voltage (V)	Conventional free air themal current (A)	Dimensions/ Sizes(mm)								Weight (g)
				Fig.	A1	A2	A3	B1	B2	H2	Φd
NT1	NH1	660	250	Figure 3	25	175	200	30	58	38	10.5	550
NT2	NH2	660	400	Figure 3	25	200	225	30	60	38	10.5	770
NT3	NH3	660	630	Figure 3	25	210	250	30	60	40	10.5	965

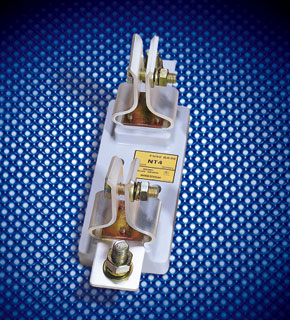

Table 4

Models	Fuse Link models	Rated insulation voltage (V)	Conventional free air themal current (A)	Dimensions/ Sizes(mm)	Weight (g)
				Fig.
NT4	NH4	660	1000	Figure 4	340

Table 5

Models	Fuse Link models	Rated insulation voltage (V)	Conventional free air themal current (A)	Dimensions/ Sizes(mm)	Weight (g)
				Fig.

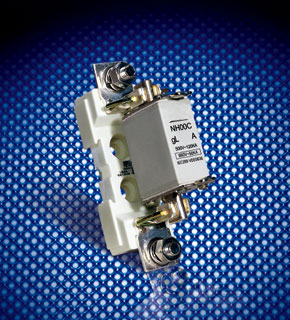

NH00	NH000, NH00	660	160	Figure 5	170

Table 6

Models	Fuse Link models	Rated insulation voltage (V)	Conventional free air themal current (A)	Dimensions/ Sizes(mm)	Weight (g)
				Fig.

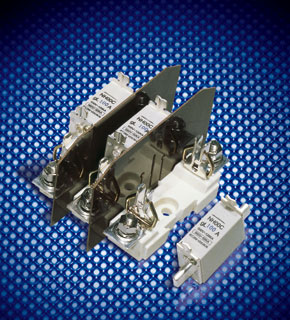

NH00-3J	NH000, NH00	660	160	Figure 6	516

Table 7

Models	Fuse Link models	Rated insulation voltage (V)	Conventional free air themal current (A)	Dimensions/ Sizes(mm)	Weight (g)
				Fig.
NH0	NH0	660	160	Figure 7	294

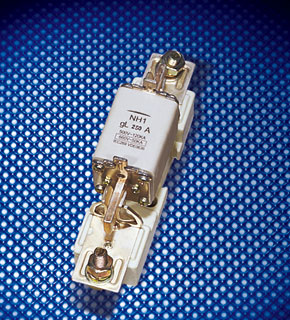

Table 8

Models	Fuse Link models	Rated insulation voltage (V)	Conventional free air themal current (A)	Dimensions/ Sizes(mm)	Weight (g)
				Fig.
NH1	NH1	660	250	Figure 8	502

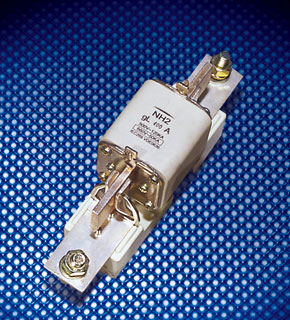

Table 9

Models	Fuse Link models	Rated insulation voltage (V)	Conventional free air themal current (A)	Dimensions/ Sizes(mm)	Weight (g)
				Fig.
NH2	NH2	660	400	Figure 9	562

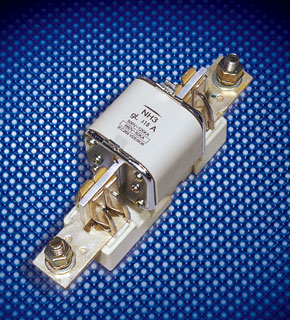

Table 10

Models	Fuse Link models	Rated insulation voltage (V)	Conventional free air themal current (A)	Dimensions/ Sizes(mm)	Weight (g)
				Fig.
NH3	NH3	660	630	Figure 10	762

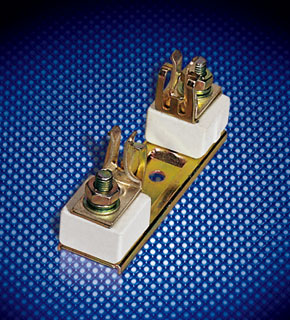

Table 11

Models	Fuse Link models	Rated insulation voltage (V)	Conventional free air themal current (A)	Dimensions/ Sizes(mm)	Weight (g)
				Fig.
NH00S1	NH000, MH00	660	160	Figure 11	240

Table 12

Models	Fuse Link models	Rated insulation voltage (V)	Conventional free air themal current (A)	Dimensions/ Sizes(mm)	Weight (g)
				Fig.
NH00S2	NH000, MH00	660	160	Figure 12	296

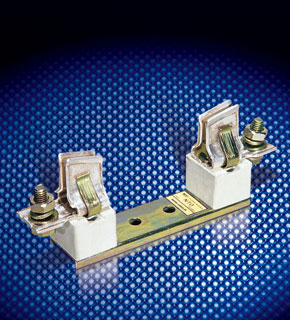

Table 13

Models	Fuse Link models	Rated insulation voltage (V)	Conventional free air themal current (A)	Dimensions/ Sizes(mm)	Weight (g)
				Fig.
NT0S	NT0	660	160	Figure 13	322

Table 14

Models	Fuse Link models	Rated insulation voltage (V)	Conventional free air themal current (A)	Dimensions/ Sizes(mm)						Weight (g)
				Fig.	A1	A2	B1	H1	H2

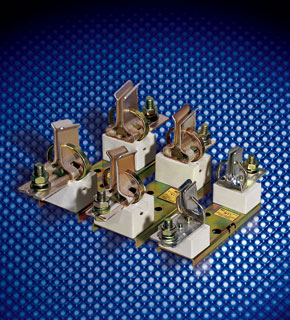

NT1S	NT1	660	250	Figure 14	175	200	50	38	82	604
NT2S	NT2	660	400	Figure 14	200	230	64	54	104	1006
NT3S	NT3	660	630	Figure 14	210	250	64	54	120	1200

Table 15

Models	Fuse Link models	Rated insulation voltage (V)	Conventional free air themal current (A)	Dimensions/ Sizes(mm)	Weight (g)
				Fig.

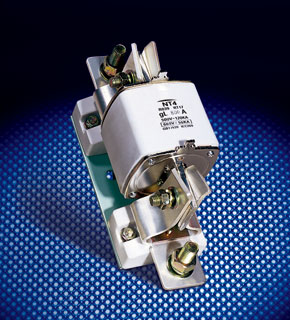

NT4S	NT4	660	1000	Figure 15	3520

Table 16

Models	Fuse Link models	Rated insulation voltage (V)	Conventional free air themal current (A)	Dimensions/ Sizes(mm)	Weight (g)
				Fig.

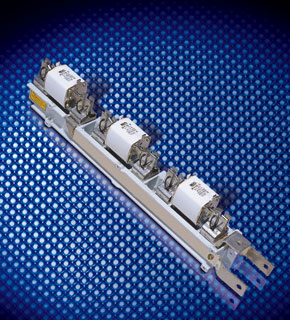

NT2-3J	NT2	660	400	Figure 16	3600

Table 17

Models	Fuse Link models	Rated insulation voltage (V)	Conventional free air themal current (A)	Dimensions/ Sizes(mm)	Weight (g)
				Fig.

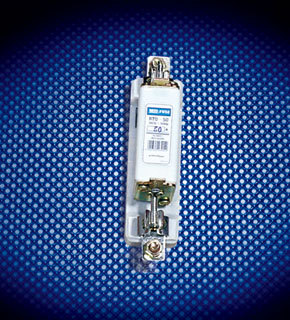

RTO-50	RTO-50	380	50	Figure 17	184

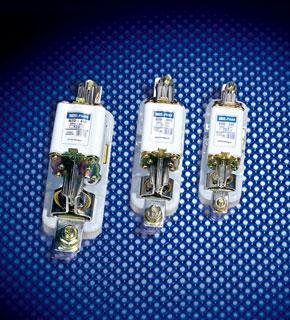

Table 18

Models	Fuse Link models	Rated insulation voltage (V)	Conventional free air themal current (A)	Dimensions/ Sizes(mm)					Weight (g)
				Fig.	A1	A2	B1	H1
RTO-100	RTO-100	380	100	Figure 18	180	160	55	73	570
RTO-200	RTO-200	380	200	Figure 18	200	175	60	83	760
RTO-400	RTO-400	380	400	Figure 18	220	190	70	95	1110

Table 19

Models	Fuse Link models	Rated insulation voltage (V)	Conventional free air themal current (A)	Dimensions/ Sizes(mm)	Weight (g)
				Fig.
RTO-600	RTO-600	380	600	Figure 19	1900
