JQX-10F(JTX)

JQX-10F(JTX)
JQX-10F(JTX)

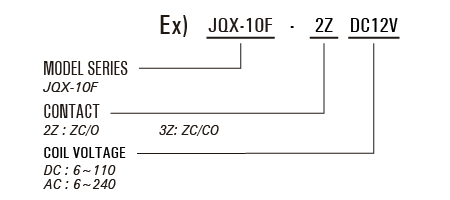

Order Code

    Order Code

Technical Data

>> Download PDF (441KB)

Technical Specification

Insulation Resistance ≥500mΩ (500VDC)
Dielectric strength Between coil and contacts ≥1500VAC1min
Between open contacts ≥1000VAC1min
Between contacts of different poles ≥1500VAC1min
Operate/ Release time ≤25ms/ 25ms
Terminal Type PCB & Socket

Contact Specification

Contact Form 2Z, 2H, 2D 3Z, 3H, 3D
Contact Resistance ≤50mΩ (1A 6VDC)
Contact Material AgCdO, AgSnO2
Contact Capacity 10A 250VAC/ 30VDC

Coil Specification

Rated Coil Power 0.9W 1.2VA

Coil Date

Nominal voltage
VDC
Operate voltage
VDC
Release voltage
VDC
Coil resistance
Ω±10%
Nominal voltage
VAC
Operate voltage
VAC
Release voltage
VAC
Coil resistance
Ω±10%
6 4.8 0.60 40 6 4.80 1.80 5.5
12 9.6 1.20 80 12 9.60 3.60 24
24 19.2 2.40 325 24 19.2 7.20 72
48 38.4 4.80 1200 48 38.4 14.4 430
100 80.0 10.0 7550 110/120 96.0 36.0 1512
110 88.0 11.0 9000 220/240 176.0 72.0 6050/7200

Dimension

Dimension
JQX-10F

Wiring Diagram

Wiring Diagram

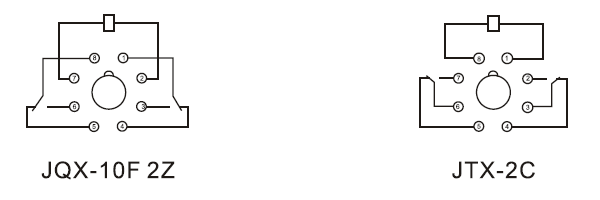

2Z
Wiring Diagram

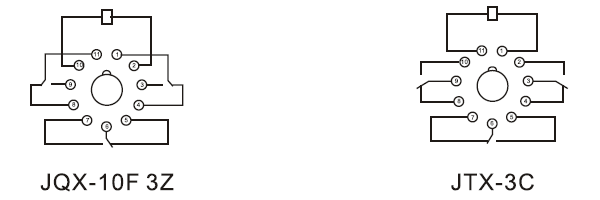

3Z

Top
