Relay

General-Purpose Relay

Home

MY2, MY3, MY4

MY2, MY3, MY4
MY2, MY3, MY4

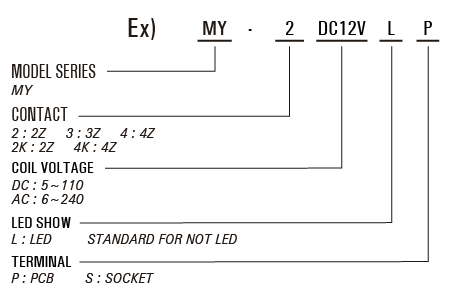

Order Code

    Order Code

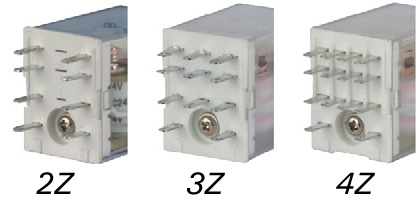

Terminal

Terminal

Connection

Connection

Technical Data

>> Download PDF (426KB)

Technical Specification

Insulation Resistance ≥500mΩ (500VDC)
Dielectric strength Between coil and contacts ≥1500VAC1min
Between open contacts ≥1000VAC1min
Between contacts of different poles ≥1500VAC1min
Operate/ Release time ≤25ms/ 25ms
Terminal Type PCB and Socket

Contact Specification

Contact Form 2Z, 2H, 2D
3Z, 3H, 3D
4Z, 4H, 4D
Contact Resistance ≤50mΩ (1A 6VDC)
Contact Material AgCdO, AgSnO2
Contact Capacity 5A 250VAC/ 30VDC 3A 250VAC/ 30VDC

Coil Specification

Rated Coil Power 0.9W 1.2VA

Coil Date

Nominal voltage
VDC
Operate voltage
VDC
Release voltage
VDC
Coil resistance
Ω±10%
Nominal voltage
VAC
Operate voltage
VAC
Release voltage
VAC
Coil resistance
Ω±10%
5 4.0 0.50 28 6 4.80 1.80 12
6 4.8 0.60 40 12 9.60 3.60 42
12 9.6 1.20 160 24 19.20 7.20 168
24 19.2 2.40 640 48 38.4 14.40 675
48 38.4 4.80 2560 110 96.0 36.60 3500
110 88.0 11.00 12100 220/240 176 66 14000/ 16500

Top

MY2K, MY4K

MY2K, MY4K
MY2K, MY4K

Order Code

    Order Code

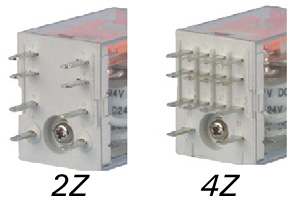

Terminal

Terminal

Connection

Connection

Technical Data

>> Download PDF (426KB)

Technical Specification

Insulation Resistance ≥500mΩ (500VDC)
Dielectric strength Between coil and contacts ≥1500VAC1min
Between open contacts ≥1000VAC1min
Between contacts of different poles ≥1500VAC1min
Operate/ Release time ≤25ms/ 25ms
Terminal Type PCB and Socket

Contact Specification

Contact Form 2Z, 2H, 2D 4Z, 4H, 4D
Contact Resistance ≤50mΩ (1A 6VDC)
Contact Material AgCdO, AgSnO2
Contact Capacity 10A 250VAC/ 30VDC 5A 250VAC/ 30VDC

Coil Specification

Rated Coil Power 0.9W 1.2VA

Coil Date

Nominal voltage
VDC
Operate voltage
VDC
Release voltage
VDC
Coil resistance
Ω±10%
Nominal voltage
VAC
Operate voltage
VAC
Release voltage
VAC
Coil resistance
Ω±10%
5 4.0 0.50 28 6 4.80 1.80 12
6 4.8 0.60 40 12 9.60 3.60 42
12 9.6 1.20 160 24 19.20 7.20 168
24 19.2 2.40 640 48 38.4 14.40 675
48 38.4 4.80 2560 110 96.0 36.60 3500
110 88.0 11.00 12100 220/240 176 66 14000/16500

Dimension

Dimension

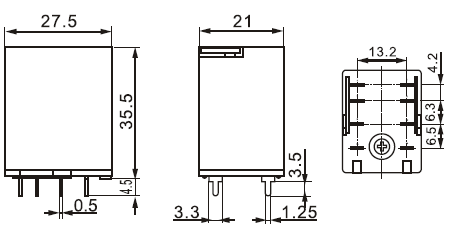

MY2K PCB
Dimension

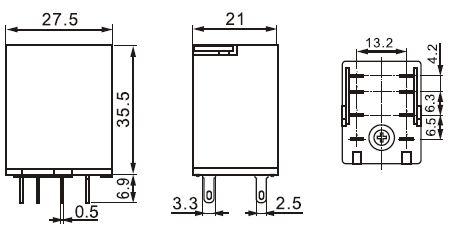

MY2K SOCKET
Dimension

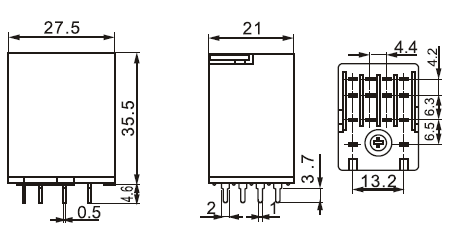

MY4K PCB
Dimension

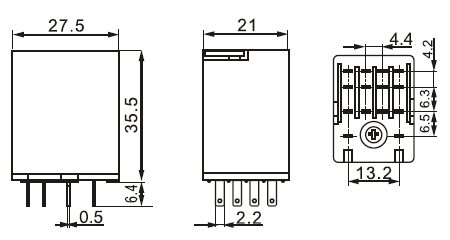

MY4K SOCKET

Wiring Diagram

Wiring Diagram
MY2K
Wiring Diagram
MY4K
