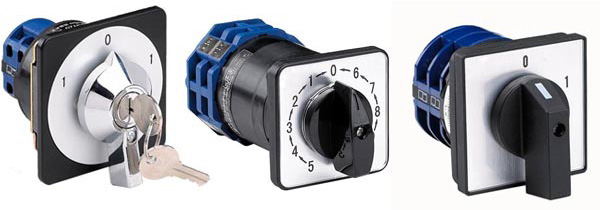

Introduction:

The LW26 sereies rotary switch mainly applies to 440V and below,AC 50Hz or 240V and below DC circuits.For breaking and closing,change-over of circuits under unfrequenly manual operation.And the typical application are:control switch of 3 phase motors,control switch gear,control switch of instruments,and change-over switch of machinery and welding machine.
The series comply with the GB 14048.3,GB 14048.5 and IEC 60947-3,IEC 60947-5-1.
The LW26 series have 7 current ratings:10A,20A,25A,32A,63A,125A and 160A.
The LW26 series rotary switch were designed for multiple functions,wide variety of appli -cations.
The LW26-10,LW26-20,LW26-25,and LW26-32F have finger protection terminals.
LW26 series rotary switch are an excellent substitute for LW2,LW5,LW6,LW8,LW12,LW15,HZ5, HZ10,and HZ12.
The LW26 series rotary switch has two derivatives,LW26GS Pad-lock and LW26S lock.
Both of them are applicable in circuits when an physical control is required.
We can equip protective box for 20A,25A,32A and 63A.

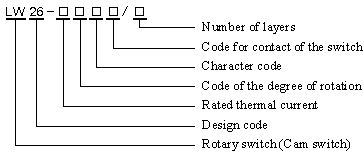

Designation
Use as control switches


Re: Character code represent the rotating type, for instance, we have limited movement, spring return and limited movement with spring return.

Use as motor switch


Re: switches in this category normally rotate at 60°. And the SN normally rotate at 45°

Use as control switch for a main circuit


Re: switches in this category normally rotate at 60°

Diagram for the operation and position of handle

Operation Angle Code Position of Handle
30° Rotation 45° Rotation 60° Rotation 90° Rotation
Spring Return A           ←30°                 ←45°
B         30°→ ←30°               45°→ ←45°
Limited Movement C           30°                 45°           60°     90°
D         30° 30°               45° 45°         60° 60°   90° 90°
E         30° 30° 60°             45° 45° 90°       90° 30° 30° 90°   90° 90° 180°
F       60° 30° 30° 60°           90° 45° 45° 90° 135°     90° 30° 30° 90° 150°
G       60° 30° 30° 60° 90°       135° 90° 45° 45° 90° 135°   150° 90° 30° 30° 90° 150°
H     90° 60° 30° 30° 60° 90°       135° 90° 45° 45° 90° 135° 180°
I     90° 60° 30° 30° 60° 90° 120°
J   120° 90° 60° 30° 30° 60° 90° 120°
K   120° 90° 60° 30° 30° 60° 90° 120° 150°
L 150° 120° 90° 60° 30° 30° 60° 90° 120° 150°
M 150° 120° 90° 60° 30° 30° 60° 90° 120° 150° 180°
N                             45°   45°           30° 30°
Limited Movemen
& Spring Return
Z         30°→ 60°               90° 0 ←45°
                          135° ←90° ←45°

Classification

Classified by utilization Classified by operation Classified by contact system
Change-over switch Limited movement Switches with limited movement could have 12 layers in maximum (for 32A and below), and for 63A and above could have 8 layers in maximum
Motor switch Spring return Switches with spring return could have 3 layers in maximum
Control switch Limited movement with spring return Motor switches could have 6 layers in maximum

Specification

Model LW26-20 LW26-25 LW26-32
Rated insulation voltage Ui 690V 690V 690V
Rated thermal current Ith 20A 25A 32A
Rated working voltage Ue(V) 120 240 440 120 240 440 120 240 440
Rated working
current Ie
AC-21A
AC-22A
- 20 20 - 25 25 - 32 32
AC-23A 15 15 22 22 30 30
AC-2 15 15 22 22 30 30
AC-3 11 11 15 15 22 22
AC-4 3.5 3.5 6.5 6.5 11 11
AC-15 5 4 8 5 14 6
DC-13 5 1 - 9 1.5 - 25 11 -
Power P (KW) AC-23A - 3.7/2.5 7.5/3.7 - 5.5/3 11/5.5 - 7.5/4 15/10
AC-2 4 7.5 5.5 11 7.5 18.5
AC-3 3/2.2 5.5/3 4/3 7.5/.7 5.5/4 11/6
AC-4 0.55/0.75 1.5/1.5 1.5/1.5 3/2.2 2.7/1.5 5.5/2.4

Model LW26-63 LW26-125 LW26-160
Rated insulation voltage Ui 690V 690V 690V
Rated thermal current Ith 63A 125A 160A
Rated working voltage Ue(V) 240 440 240 440 240 440
Rated working
current Ie
AC-21A
AC-22A
63 63 100 100 150 150
AC-23A 57 57 90 90 135 135
AC-2 57 57 90 90 135 135
AC-3 36 36 75 75 95 95
AC-4 15 15 30 30 55 55
AC-15 - - - - - -
DC-13 - - - - - -
Power P (KW) AC-23A 15/10 30/18.5 30/15 45/22 37/22 75/37
AC-2 18.5 30 30 45 37 55
AC-3 11/6 18.5/11 18.5/11 30/13 22/11 37/18.5
AC-4 5.5/2.4 7.5/4 7.5/4 12/5.5 10/4 15/7.5

Escutcheon plate & Handle

Escutcheon Plate Handle Color Escutcheon plate Handle Color Escutcheon Plate
M1 M2 M3 M1 M2 M3

M0

R type
Black
Red
White
Glay










I type
Black
Red
White
Glay








M1

F type
Black
Red
White
Glay







B type
Black
Red
White
Glay








M2

S type
Black
Red
White
Glay







L type
Black
Red
White
Glay





M3

P type
Black
Red
White
Glay







K type
Black
Red
White
Glay






Remark: ● Standard, ○ Optional.

Type of handle

Products Escutheon Plate Handle Rotating Angle Max. No. of Layer
M0 M1 M2 M3 R F S P I B L K 30° 45° 60° 90° 12 8 4
LW26-10
LW26-20
LW26-25
LW26-32
LW26-63
LW26-125
LW26-160

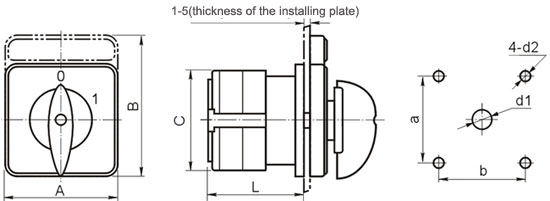

Dimensions and installation

Description Escutcheon plate Dimensions (mm) Installation (mm)
A B C L a b d1 d2
LW26-10 M0 square 30 30 28 26.5+12n 20   Φ8 Φ3.2
LW26-20 M1 square 48 48 43 22+9.6n 36 36 Φ8.5 Φ4.5
LW26-25 M1 square with rectangle plate added 48 60 43 22+9.6n 36 36 Φ8.5 Φ4.5
M2 square 64 64 43 25+9.6n 48 48 Φ10 Φ4.5
M2 square with rectangle plate added 64 80 43 25+9.6n 48 48 Φ10 Φ4.5
M1 square 48 48 45.2 23+12.8n 36 36 Φ8.5 Φ4.5
LW26-32 M1 square with rectangle plate added 48 60 45.2 23+12.8n 36 36 Φ8.5 Φ4.5
M2 square 64 64 45.2 26.5+12.8n 48 48 Φ10 Φ4.5
M2 square with rectangle plate added 64 80 45.2 26.5+12.8n 48 48 Φ10 Φ4.5
LW26-63 M2 square 64 64 58 29.2+12.8n 48 48 Φ10 Φ4.5
M2 square with rectangle plate added 64 80 58 29.2+12.8n 48 48 Φ10 Φ4.5
M2 square 64 64 66 29.2+21.5n 48 48 Φ10 Φ4.5
M2 square with rectangle plate added 64 80 66 29.2+21.5n 48 48 Φ10 Φ4.5
LW26-125 M3 square 88 88 66 29.2+21.5n 68 68 Φ10 Φ4.5
M3 square with rectangle plate added 88 107 66 29.2+21.5n 68 68 Φ10 Φ4.5
M3 square 88 88 84 35+26.5n 68 68 Φ13 Φ
LW26-160 M3 square with rectangle plate added 88 107 84 35+26.5n 68 68 Φ13 Φ6
M3 square 88 88 88 35+32.5n 68 68 Φ13 Φ6
M3 square with rectangle plate added 88 107 88 35+32.5n 68 68 Φ13 Φ6

LW26-20 Round escutcheon plate

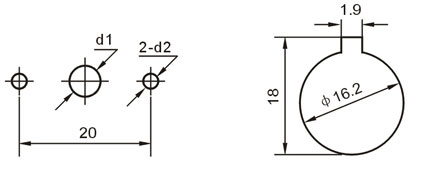

LW26-10 front installation、hole installation
