Applications

  • Protection against overload and short-circuit in electric lines (type gG), also available for protection of semiconductor parts and equipment against short-circuit (type aR) and protection of motors (type aM).
  • Rated voltage up to 1200V; Rated current up to 630A; Working frequency 50Hz AC; Rated breaking capacity up to 80KA. Compliant with GB13539 and IEC269.

Design Features

  • Variable cross-section fuse element made from pure copper or silver sealed in cartridge made from high-duty ceramic or epoxy glass. Fuse tube filled with chemically treated high-purity quartz’s and as arc-extinguishing medium. Dot-welding of fuse element ends to the terminals ensures reliable electric connection and forms insert knife type contacts. Striker may be attached to the fuse link to provide immediate activation of micro switch to give various signals or cut the circuit automatically.
Table 1
Types Rated voltage(V) Rate current Dimension/ Size (mm) Weight (g)
Ours Cross reference
General (gG) Fast(aR) General (gG) Fast(aR) Fig. A B C ΦD E F H Φd
RGOK RGSOK NIT -- 415 1 ~ 32 Figure 1 34 45 55 13.5 11 0.8 14.5 5 14.4
RG2 RGS2 TIS, RT12-63 -- 500 40 ~ 100 Figure 1 56 75 88 25.5 13 1.2 27 6.5 73.8
RGOK, RG2, RGSOK, RGS2 RGOK, RG2, RGSOK, RGS2 RGOK, RG2, RGSOK, RGS2 RGOK, RG2, RGSOK, RGS2
RGOK, RG2, RGSOK, RGS2 RGOK, RG2, RGSOK, RGS2 RGOK, RG2, RGSOK, RGS2 RGOK, RG2, RGSOK, RGS2
RGOK, RG2, RGSOK, RGS2 RGOK, RG2, RGSOK, RGS2 RGOK, RG2, RGSOK, RGS2 RGOK, RG2, RGSOK, RGS2
RGOK, RG2, RGSOK, RGS2 RGOK, RG2, RGSOK, RGS2 RGOK, RG2, RGSOK, RGS2 RGOK, RG2, RGSOK, RGS2
Figure 1
RGOK, RG2, RGSOK, RGS2
Table 2
Types Rated voltage(V) Rate current(A) Dimension/ Size (mm) Weight (g)
Ours Cross reference
General (gG) Fast(aR) General (gG) Fast(aR) Fig. A B C ΦD E F H Φd
RG1 RGS1 TIA -- 500 4 ~ 35 Figure 2 54 73 85 22 9.5 1.5 25 5.5 x 7.5 55
RG3 RGS3 -- -- 500 6 ~ 63 Figure 2 54 73 85 22 9.5 1.5 25 5.5 x 7.5 51.1
RG4 RGS4 -- GSG 660/1000 10 ~ 63 Figure 2 49.5 63 77 16.5 12.5 2.0 18 6.5 x 9 32
RG6 RGS6 -- GSA 500 80 Figure 2 68 93 112 31 19 2.0 33 9 x 11.5 146
RG7 -- TCP -- 500 100 Figure 2 68 95 114 34 19 2.0 35 9 x 11.5 228
RG7A RGS7A -- PC10D 500 110 ~ 150 Figure 2 57 99 119 38 24 3.0 40 5 178
RG11 RGS11 -- CR2L GSB 250/380 16 ~ 75 Figure 2 27.5 42 56 16.5 12.5 2.0 17.5 6.5 x 9 25
RG12 RGS12 -- CR2L GSB 250/500 75 ~ 175 Figure 2 31.5 58 80 26 19 3.0 27 9 x 11.5 79.5
RG14 RGS14 -- GSB 500 5 ~ 20 Figure 2 31 37 46 8.5 7 0.8 9.5 4.5 x 6 55
RG14B RGS14B -- GSB 500 5 ~ 20 Figure 2 54 64 73 8.5 7 0.8 9.5 4.5 x 6 8.5
RG15 RGS15 -- CR2L GSB 250/500 200 Figure 2 34 60 88 30 25 3.0 36 11 x 13 120
RG17 RGS17 -- GSB 500 40 ~ 100 Figure 2 54 78 96 22.2 20.5 2 24 9 x 12 62.3
RG18 RGS18 -- CR6L 600 75 ~ 150 Figure 2 40 70 95 30 25 3.2 33 11 x 13 14.7
RG19 RGS19 -- CR6L 600 200 ~ 250 Figure 2 43 82 107 37 30 4.0 42 11 x 13 219
RG0H -- AAO   500 2 ~ 32 Figure 2 34 72 84 13.5 9.4 1.2 15 5.5 x 7.8 18
RG4AD RGS4AD -- 250GH 250 32 ~ 160 Figure 2 29 56 77 23.8 20 3 25.5 9 x 14 39
RG4A RGS4A -- 660GH 660 125 ~ 200 Figure 2 50 77 98 23.8 20 3 25.5 9 x 14 53
RG4B RGS4B -- 660GH 660 225 ~ 315 Figure 2 50.5 82 108 31 25 3 34 10.5 x 16 75
RG1, RGS1, RG3, RGS3, RG4, RGS4, RG6, RGS6, RG7, RG7A, RGS7A, RG11, RGS11, RG12, RGS12, RG14, RGS14, RG14B, RGS14B, RG15, RGS15, RG17, RGS17, RG18, RGS18, RG19, RGS19, RG0H, RG4AD, RGS4AD, RG4A, RGS4A, RG4B, RGS4B RG1, RGS1, RG3, RGS3, RG4, RGS4, RG6, RGS6, RG7, RG7A, RGS7A, RG11, RGS11, RG12, RGS12, RG14, RGS14, RG14B, RGS14B, RG15, RGS15, RG17, RGS17, RG18, RGS18, RG19, RGS19, RG0H, RG4AD, RGS4AD, RG4A, RGS4A, RG4B, RGS4B RG1, RGS1, RG3, RGS3, RG4, RGS4, RG6, RGS6, RG7, RG7A, RGS7A, RG11, RGS11, RG12, RGS12, RG14, RGS14, RG14B, RGS14B, RG15, RGS15, RG17, RGS17, RG18, RGS18, RG19, RGS19, RG0H, RG4AD, RGS4AD, RG4A, RGS4A, RG4B, RGS4B RG1, RGS1, RG3, RGS3, RG4, RGS4, RG6, RGS6, RG7, RG7A, RGS7A, RG11, RGS11, RG12, RGS12, RG14, RGS14, RG14B, RGS14B, RG15, RGS15, RG17, RGS17, RG18, RGS18, RG19, RGS19, RG0H, RG4AD, RGS4AD, RG4A, RGS4A, RG4B, RGS4B
RG1, RGS1, RG3, RGS3, RG4, RGS4, RG6, RGS6, RG7, RG7A, RGS7A, RG11, RGS11, RG12, RGS12, RG14, RGS14, RG14B, RGS14B, RG15, RGS15, RG17, RGS17, RG18, RGS18, RG19, RGS19, RG0H, RG4AD, RGS4AD, RG4A, RGS4A, RG4B, RGS4B RG1, RGS1, RG3, RGS3, RG4, RGS4, RG6, RGS6, RG7, RG7A, RGS7A, RG11, RGS11, RG12, RGS12, RG14, RGS14, RG14B, RGS14B, RG15, RGS15, RG17, RGS17, RG18, RGS18, RG19, RGS19, RG0H, RG4AD, RGS4AD, RG4A, RGS4A, RG4B, RGS4B RG1, RGS1, RG3, RGS3, RG4, RGS4, RG6, RGS6, RG7, RG7A, RGS7A, RG11, RGS11, RG12, RGS12, RG14, RGS14, RG14B, RGS14B, RG15, RGS15, RG17, RGS17, RG18, RGS18, RG19, RGS19, RG0H, RG4AD, RGS4AD, RG4A, RGS4A, RG4B, RGS4B RG1, RGS1, RG3, RGS3, RG4, RGS4, RG6, RGS6, RG7, RG7A, RGS7A, RG11, RGS11, RG12, RGS12, RG14, RGS14, RG14B, RGS14B, RG15, RGS15, RG17, RGS17, RG18, RGS18, RG19, RGS19, RG0H, RG4AD, RGS4AD, RG4A, RGS4A, RG4B, RGS4B
RG1, RGS1, RG3, RGS3, RG4, RGS4, RG6, RGS6, RG7, RG7A, RGS7A, RG11, RGS11, RG12, RGS12, RG14, RGS14, RG14B, RGS14B, RG15, RGS15, RG17, RGS17, RG18, RGS18, RG19, RGS19, RG0H, RG4AD, RGS4AD, RG4A, RGS4A, RG4B, RGS4B RG1, RGS1, RG3, RGS3, RG4, RGS4, RG6, RGS6, RG7, RG7A, RGS7A, RG11, RGS11, RG12, RGS12, RG14, RGS14, RG14B, RGS14B, RG15, RGS15, RG17, RGS17, RG18, RGS18, RG19, RGS19, RG0H, RG4AD, RGS4AD, RG4A, RGS4A, RG4B, RGS4B RG1, RGS1, RG3, RGS3, RG4, RGS4, RG6, RGS6, RG7, RG7A, RGS7A, RG11, RGS11, RG12, RGS12, RG14, RGS14, RG14B, RGS14B, RG15, RGS15, RG17, RGS17, RG18, RGS18, RG19, RGS19, RG0H, RG4AD, RGS4AD, RG4A, RGS4A, RG4B, RGS4B RG1, RGS1, RG3, RGS3, RG4, RGS4, RG6, RGS6, RG7, RG7A, RGS7A, RG11, RGS11, RG12, RGS12, RG14, RGS14, RG14B, RGS14B, RG15, RGS15, RG17, RGS17, RG18, RGS18, RG19, RGS19, RG0H, RG4AD, RGS4AD, RG4A, RGS4A, RG4B, RGS4B
RG1, RGS1, RG3, RGS3, RG4, RGS4, RG6, RGS6, RG7, RG7A, RGS7A, RG11, RGS11, RG12, RGS12, RG14, RGS14, RG14B, RGS14B, RG15, RGS15, RG17, RGS17, RG18, RGS18, RG19, RGS19, RG0H, RG4AD, RGS4AD, RG4A, RGS4A, RG4B, RGS4B RG1, RGS1, RG3, RGS3, RG4, RGS4, RG6, RGS6, RG7, RG7A, RGS7A, RG11, RGS11, RG12, RGS12, RG14, RGS14, RG14B, RGS14B, RG15, RGS15, RG17, RGS17, RG18, RGS18, RG19, RGS19, RG0H, RG4AD, RGS4AD, RG4A, RGS4A, RG4B, RGS4B RG1, RGS1, RG3, RGS3, RG4, RGS4, RG6, RGS6, RG7, RG7A, RGS7A, RG11, RGS11, RG12, RGS12, RG14, RGS14, RG14B, RGS14B, RG15, RGS15, RG17, RGS17, RG18, RGS18, RG19, RGS19, RG0H, RG4AD, RGS4AD, RG4A, RGS4A, RG4B, RGS4B RG1, RGS1, RG3, RGS3, RG4, RGS4, RG6, RGS6, RG7, RG7A, RGS7A, RG11, RGS11, RG12, RGS12, RG14, RGS14, RG14B, RGS14B, RG15, RGS15, RG17, RGS17, RG18, RGS18, RG19, RGS19, RG0H, RG4AD, RGS4AD, RG4A, RGS4A, RG4B, RGS4B
Figure 2
RG1, RGS1, RG3, RGS3, RG4, RGS4, RG6, RGS6, RG7, RG7A, RGS7A, RG11, RGS11, RG12, RGS12, RG14, RGS14, RG14B, RGS14B, RG15, RGS15, RG17, RGS17, RG18, RGS18, RG19, RGS19, RG0H, RG4AD, RGS4AD, RG4A, RGS4A, RG4B, RGS4B
RG1, RGS1, RG3, RGS3, RG4, RGS4, RG6, RGS6, RG7, RG7A, RGS7A, RG11, RGS11, RG12, RGS12, RG14, RGS14, RG14B, RGS14B, RG15, RGS15, RG17, RGS17, RG18, RGS18, RG19, RGS19, RG0H, RG4AD, RGS4AD, RG4A, RGS4A, RG4B, RGS4B
Table 3
Types Rated voltage(V) Rate current(A) Dimension/ Size (mm) Weight (g)
Ours Cross reference
General (gG) Fast(aR) General (gG) Fast(aR) Fig. A C ΦD E F

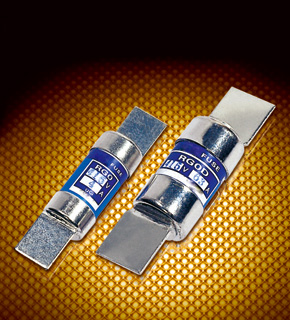

RG0 RGS0 NS -- 415 1 ~ 32 Figure 3 32 59 13.5 11 0.8 15.2
RG0D RGS0D NS -- 415 40 ~ 63 Figure 3 39 69 17.5 15 1.2 24
RG0, RG0D, RGS0, RGS0D RG0, RG0D, RGS0, RGS0D RG0, RG0D, RGS0, RGS0D RG0, RG0D, RGS0, RGS0D
RG0, RG0D, RGS0, RGS0D RG0, RG0D, RGS0, RGS0D RG0, RG0D, RGS0, RGS0D RG0, RG0D, RGS0, RGS0D
RG0, RG0D, RGS0, RGS0D RG0, RG0D, RGS0, RGS0D RG0, RG0D, RGS0, RGS0D RG0, RG0D, RGS0, RGS0D
RG0, RG0D, RGS0, RGS0D RG0, RG0D, RGS0, RGS0D RG0, RG0D, RGS0, RGS0D RG0, RG0D, RGS0, RGS0D
Figure 3
RG0, RG0D, RGS0, RGS0D
Table 4
Types Rated voltage(V) Rate current(A) Dimension/ Size (mm) Weight (g)
Ours Cross reference
General (gG) Fast(aR) General (gG) Fast(aR) Fig. A B C ΦD E F H Φd

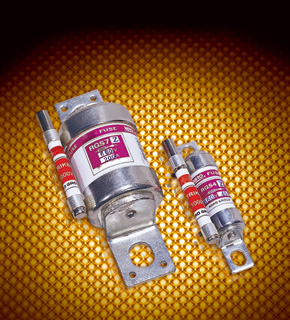

RG4(Z) RGS4(Z) -- -- 660/1000 63 Figure 4 49.5 63 77 16.5 12.5 2 24 6.5 x 9 35
-- RGS7 -- -- 500 100 Figure 4 59 83 110 38 25 3 -- 11 x 4 280
-- RGS7(Z) -- -- 500 100 Figure 4 59 83 110 38 25 3 44 11 x 4 295
RG4(Z), RGS4(Z), RGS7, RGS7(Z) RG4(Z), RGS4(Z), RGS7, RGS7(Z) RG4(Z), RGS4(Z), RGS7, RGS7(Z) RG4(Z), RGS4(Z), RGS7, RGS7(Z)
RG4(Z), RGS4(Z), RGS7, RGS7(Z) RG4(Z), RGS4(Z), RGS7, RGS7(Z) RG4(Z), RGS4(Z), RGS7, RGS7(Z) RG4(Z), RGS4(Z), RGS7, RGS7(Z)
RG4(Z), RGS4(Z), RGS7, RGS7(Z) RG4(Z), RGS4(Z), RGS7, RGS7(Z) RG4(Z), RGS4(Z), RGS7, RGS7(Z) RG4(Z), RGS4(Z), RGS7, RGS7(Z)
RG4(Z), RGS4(Z), RGS7, RGS7(Z) RG4(Z), RGS4(Z), RGS7, RGS7(Z) RG4(Z), RGS4(Z), RGS7, RGS7(Z) RG4(Z), RGS4(Z), RGS7, RGS7(Z)
Figure 4
RG4(Z), RGS4(Z), RGS7, RGS7(Z)
Table 5
Types Rated voltage(V) Rate current(A) Dimension/ Size (mm) Weight(g)
Ours Cross reference
General (gG) Fast(aR) General (gG) Fast(aR) Fig. A B C ΦD E F H Φd

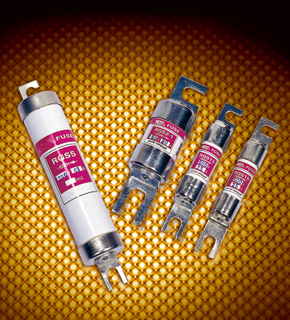

RG2-1 RGS2-1 -- PC63 500 32 ~ 63 Figure 5 51 80 98 25 19 2.0 28.5 9 81
RG5 RGS5 -- GSB 1200 6 ~ 32 Figure 5 110 121 138 26 13 1.5 27 6.5 91
RG5-1 RGS5-1 --   1200 16 ~ 75 Figure 5 107.5 127 140 25.5 13 1.3 28 6.5 x 9 98
RG5D RGS5D -- GSB 1200 32 ~ 63 Figure 5 110 124 138 26 13 1.5 27 6.5 107
RG13 RGS13 -- PC25 500 2 ~ 25 Figure 5 57 75 91 15 13 1.5 20.5 6.5 37
RG16 RGS16 -- GSB 500 25 ~ 40 Figure 5 56 78 95 14 13 1.5 17 6.5 29
RG2-1, RG5, RG5-1, RG5D, RG13, RG16, RGS2-1, RGS5, RGS5-1, RGS5D, RGS13, RGS16 RG2-1, RG5, RG5-1, RG5D, RG13, RG16, RGS2-1, RGS5, RGS5-1, RGS5D, RGS13, RGS16 RG2-1, RG5, RG5-1, RG5D, RG13, RG16, RGS2-1, RGS5, RGS5-1, RGS5D, RGS13, RGS16 RG2-1, RG5, RG5-1, RG5D, RG13, RG16, RGS2-1, RGS5, RGS5-1, RGS5D, RGS13, RGS16
RG2-1, RG5, RG5-1, RG5D, RG13, RG16, RGS2-1, RGS5, RGS5-1, RGS5D, RGS13, RGS16 RG2-1, RG5, RG5-1, RG5D, RG13, RG16, RGS2-1, RGS5, RGS5-1, RGS5D, RGS13, RGS16 RG2-1, RG5, RG5-1, RG5D, RG13, RG16, RGS2-1, RGS5, RGS5-1, RGS5D, RGS13, RGS16 RG2-1, RG5, RG5-1, RG5D, RG13, RG16, RGS2-1, RGS5, RGS5-1, RGS5D, RGS13, RGS16
RG2-1, RG5, RG5-1, RG5D, RG13, RG16, RGS2-1, RGS5, RGS5-1, RGS5D, RGS13, RGS16 RG2-1, RG5, RG5-1, RG5D, RG13, RG16, RGS2-1, RGS5, RGS5-1, RGS5D, RGS13, RGS16 RG2-1, RG5, RG5-1, RG5D, RG13, RG16, RGS2-1, RGS5, RGS5-1, RGS5D, RGS13, RGS16 RG2-1, RG5, RG5-1, RG5D, RG13, RG16, RGS2-1, RGS5, RGS5-1, RGS5D, RGS13, RGS16
RG2-1, RG5, RG5-1, RG5D, RG13, RG16, RGS2-1, RGS5, RGS5-1, RGS5D, RGS13, RGS16 RG2-1, RG5, RG5-1, RG5D, RG13, RG16, RGS2-1, RGS5, RGS5-1, RGS5D, RGS13, RGS16 RG2-1, RG5, RG5-1, RG5D, RG13, RG16, RGS2-1, RGS5, RGS5-1, RGS5D, RGS13, RGS16 RG2-1, RG5, RG5-1, RG5D, RG13, RG16, RGS2-1, RGS5, RGS5-1, RGS5D, RGS13, RGS16
Figure 5
RG2-1, RG5, RG5-1, RG5D, RG13, RG16, RGS2-1, RGS5, RGS5-1, RGS5D, RGS13, RGS16
Table 6
Types Rated voltage(V) Rate current(A) Dimension/ Size (mm) Weight(g)
Ours Cross reference
General (gG) Fast(aR) General (gG) Fast(aR) Fig. A B C ΦD E F Φd

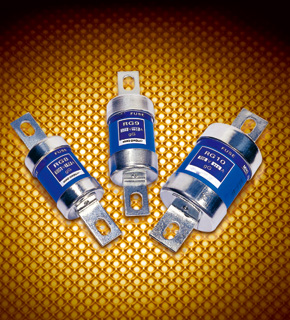

RG8 RGS8 TC -- 415/550 125 ~ 160 Figure 6 63.5 110 135 38 19 3.0 8.5 x 15 212
RG8B RG8B -- -- 415/550 80 ~ 100 Figure 6 60 74 94 22 20 3.0 6 x 9 60.9
RG9 RG9 RT15-200/B2 -- 415/550 200 Figure 6 74 110 135 40 19 3 9.5 x 15 24.2
RG10 RGS10 RT15-350/B3 -- 415/550 250 ~ 350 Figure 6 76 112 138 53 25 3 9 x 15 451
RG10B RGS10B TM -- 415/550 355 ~ 400 Figure 6 73.5 110 135 60 25 4 8.5 x 15 563
RG8, RG8B, RG9, RG10, RG10B, RGS8, RG8SB, RGS9, RGS10, RGS10B RG8, RG8B, RG9, RG10, RG10B, RGS8, RG8SB, RGS9, RGS10, RGS10B RG8, RG8B, RG9, RG10, RG10B, RGS8, RG8SB, RGS9, RGS10, RGS10B RG8, RG8B, RG9, RG10, RG10B, RGS8, RG8SB, RGS9, RGS10, RGS10B
RG8, RG8B, RG9, RG10, RG10B, RGS8, RG8SB, RGS9, RGS10, RGS10B RG8, RG8B, RG9, RG10, RG10B, RGS8, RG8SB, RGS9, RGS10, RGS10B RG8, RG8B, RG9, RG10, RG10B, RGS8, RG8SB, RGS9, RGS10, RGS10B RG8, RG8B, RG9, RG10, RG10B, RGS8, RG8SB, RGS9, RGS10, RGS10B
RG8, RG8B, RG9, RG10, RG10B, RGS8, RG8SB, RGS9, RGS10, RGS10B RG8, RG8B, RG9, RG10, RG10B, RGS8, RG8SB, RGS9, RGS10, RGS10B RG8, RG8B, RG9, RG10, RG10B, RGS8, RG8SB, RGS9, RGS10, RGS10B RG8, RG8B, RG9, RG10, RG10B, RGS8, RG8SB, RGS9, RGS10, RGS10B
RG8, RG8B, RG9, RG10, RG10B, RGS8, RG8SB, RGS9, RGS10, RGS10B RG8, RG8B, RG9, RG10, RG10B, RGS8, RG8SB, RGS9, RGS10, RGS10B RG8, RG8B, RG9, RG10, RG10B, RGS8, RG8SB, RGS9, RGS10, RGS10B RG8, RG8B, RG9, RG10, RG10B, RGS8, RG8SB, RGS9, RGS10, RGS10B
Figure 6
RG8, RG8B, RG9, RG10, RG10B, RGS8, RG8SB, RGS9, RGS10, RGS10B
Table 7
Types Rated voltage(V) Rate current(A) Dimension/ Size (mm) Weight(g)
Ours Cross reference
General (gG) Fast(aR) General (gG) Fast(aR) Fig. A B C ΦD E F H Φd
RG77 RGS77 -- GSG 660/1000 100 ~ 500 Figure 7 58 85 110 38 25 6 80 11 x 14 455
RG77YK RGS77YK -- -- 660/1000 100 ~ 500 Figure 7 58 110 137 38 25 6 80 10.5 x 22 495
RG77F RGS77F -- -- 660/1000 100 ~ 350 Figure 7 46 80 104 34.5 25 6 83 10 x 16 335
RG19 RGS19 -- CR6L 600 600 Figure 7 43 97 122 36.5 30 8 83 11 x 13 219
Note:
    1) According to user’s requirements, the above-mentioned products can be added fuse striker “Z”. Please add “Z” after the model when ordering.
    2) RG77YK open type as dashed shows in the drawing.
RG77, RG77YK, RG77F, RG19, RGS77, RGS77YK, RGS77F, RGS19 RG77, RG77YK, RG77F, RG19, RGS77, RGS77YK, RGS77F, RGS19 RG77, RG77YK, RG77F, RG19, RGS77, RGS77YK, RGS77F, RGS19 RG77, RG77YK, RG77F, RG19, RGS77, RGS77YK, RGS77F, RGS19
RG77, RG77YK, RG77F, RG19, RGS77, RGS77YK, RGS77F, RGS19 RG77, RG77YK, RG77F, RG19, RGS77, RGS77YK, RGS77F, RGS19 RG77, RG77YK, RG77F, RG19, RGS77, RGS77YK, RGS77F, RGS19 RG77, RG77YK, RG77F, RG19, RGS77, RGS77YK, RGS77F, RGS19
RG77, RG77YK, RG77F, RG19, RGS77, RGS77YK, RGS77F, RGS19 RG77, RG77YK, RG77F, RG19, RGS77, RGS77YK, RGS77F, RGS19 RG77, RG77YK, RG77F, RG19, RGS77, RGS77YK, RGS77F, RGS19 RG77, RG77YK, RG77F, RG19, RGS77, RGS77YK, RGS77F, RGS19
RG77, RG77YK, RG77F, RG19, RGS77, RGS77YK, RGS77F, RGS19 RG77, RG77YK, RG77F, RG19, RGS77, RGS77YK, RGS77F, RGS19 RG77, RG77YK, RG77F, RG19, RGS77, RGS77YK, RGS77F, RGS19 RG77, RG77YK, RG77F, RG19, RGS77, RGS77YK, RGS77F, RGS19

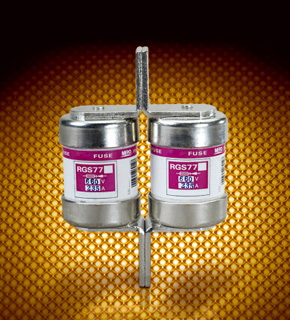

Figure 7
RG77, RG77YK, RG77F, RG19, RGS77, RGS77YK, RGS77F, RGS19
Table 8
Types Rated voltage(V) Rate current(A) Dimension/ Size (mm) Weight (g)
Ours Cross reference
General (gG) Fast(aR) General (gG) Fast(aR) Fig.

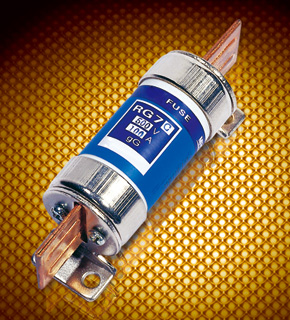

RG7C RGS7C -- -- 500/1000 1000 Figure 8 397
RG7C, RGS7C RG7C, RGS7C RG7C, RGS7C RG7C, RGS7C
RG7C, RGS7C RG7C, RGS7C RG7C, RGS7C RG7C, RGS7C
Figure 8
RG7C, RGS7C
Table 9
Types Rated voltage(V) Rate current(A) Dimension/ Size (mm) Weight (g)
Ours Cross reference
General (gG) Fast(aR) General (gG) Fast(aR) Fig.

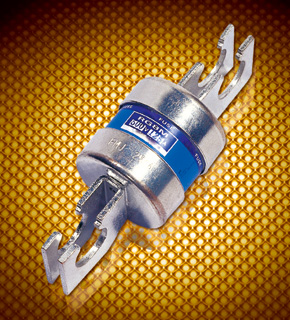

RG8M RGS8M -- RG8M 415/550 80 ~ 315 Figure 9 507
RG8M, RGS8M RG8M, RGS8M RG8M, RGS8M RG8M, RGS8M
RG8M, RGS8M RG8M, RGS8M RG8M, RGS8M RG8M, RGS8M
Figure 9
RG8M, RGS8M
Table 10
Types Rated voltage(V) Rate current(A) Dimension/ Size (mm) Weight(g)
Ours Cross-reference
General (gG) Fast(aR) General (gG) Fast(aR) Fig.

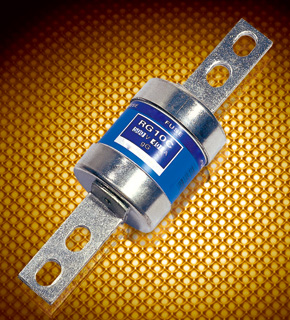

RG10C RGS10C -- -- 500/1000 415 ~ 630 Figure 10 840
RG10C, RGS10C RG10C, RGS10C RG10C, RGS10C RG10C, RGS10C
RG10C, RGS10C RG10C, RGS10C RG10C, RGS10C RG10C, RGS10C
RG10C, RGS10C RG10C, RGS10C RG10C, RGS10C RG10C, RGS10C
Figure 10
RG10C, RGS10C
Table 11
Types Rated voltage(V) Rate current(A) Dimension/ Size (mm) Weight (g)
Ours Cross reference
General (gG) Fast(aR) General (gG) Fast(aR) Fig.

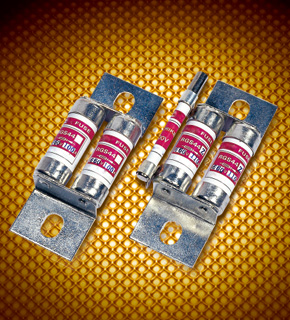

RG44(Z) RGS44(Z) -- GSG 660/1000 75 ~ 160 Figure 11 78
RG44(Z), RGS44(Z) RG44(Z), RGS44(Z) RG44(Z), RGS44(Z) RG44(Z), RGS44(Z)
RG44(Z), RGS44(Z) RG44(Z), RGS44(Z) RG44(Z), RGS44(Z) RG44(Z), RGS44(Z)
RG44(Z), RGS44(Z) RG44(Z), RGS44(Z) RG44(Z), RGS44(Z) RG44(Z), RGS44(Z)
RG44(Z), RGS44(Z) RG44(Z), RGS44(Z) RG44(Z), RGS44(Z) RG44(Z), RGS44(Z)
Figure 11
RG44(Z), RGS44(Z)

Characteristics Curve

Time-current rang of  “gG” fuse links 2A~500A Time-current rang of  “gG” fuse links 2A~500A Time-current rang of  “gG” fuse links 2A~500A Time-current rang of  “gG” fuse links 2A~500A Time-current rang of  “gG” fuse links 2A~500A
Time-current rang of  “gG” fuse links 2A~500A Time-current rang of  “gG” fuse links 2A~500A Time-current rang of  “gG” fuse links 2A~500A Time-current rang of  “gG” fuse links 2A~500A Time-current rang of  “gG” fuse links 2A~500A
Time-current rang of  “gG” fuse links 2A~500A Time-current rang of  “gG” fuse links 2A~500A Time-current rang of  “gG” fuse links 2A~500A Time-current rang of  “gG” fuse links 2A~500A Time-current rang of  “gG” fuse links 2A~500A
Time-current rang of  “gG” fuse links 2A~500A Time-current rang of  “gG” fuse links 2A~500A Time-current rang of  “gG” fuse links 2A~500A Time-current rang of  “gG” fuse links 2A~500A Time-current rang of  “gG” fuse links 2A~500A
Time-current rang of “gG” fuse links
Time-current rang of  “gG” fuse links 4A~630A Time-current rang of  “gG” fuse links 4A~630A Time-current rang of  “gG” fuse links 4A~630A Time-current rang of  “gG” fuse links 4A~630A Time-current rang of  “gG” fuse links 4A~630A
Time-current rang of  “gG” fuse links 4A~630A Time-current rang of  “gG” fuse links 4A~630A Time-current rang of  “gG” fuse links 4A~630A Time-current rang of  “gG” fuse links 4A~630A Time-current rang of  “gG” fuse links 4A~630A
Time-current rang of  “gG” fuse links 4A~630A Time-current rang of  “gG” fuse links 4A~630A Time-current rang of  “gG” fuse links 4A~630A Time-current rang of  “gG” fuse links 4A~630A Time-current rang of  “gG” fuse links 4A~630A
Time-current rang of  “gG” fuse links 4A~630A Time-current rang of  “gG” fuse links 4A~630A Time-current rang of  “gG” fuse links 4A~630A Time-current rang of  “gG” fuse links 4A~630A Time-current rang of  “gG” fuse links 4A~630A
Time-current rang of “gG” fuse links
Breaking current characteristics curve of “gG” fuse links Breaking current characteristics curve of “gG” fuse links Breaking current characteristics curve of “gG” fuse links Breaking current characteristics curve of “gG” fuse links
Breaking current characteristics curve of “gG” fuse links Breaking current characteristics curve of “gG” fuse links Breaking current characteristics curve of “gG” fuse links Breaking current characteristics curve of “gG” fuse links
Breaking current characteristics curve of “gG” fuse links Breaking current characteristics curve of “gG” fuse links Breaking current characteristics curve of “gG” fuse links Breaking current characteristics curve of “gG” fuse links
Breaking current characteristics curve of “gG” fuse links Breaking current characteristics curve of “gG” fuse links Breaking current characteristics curve of “gG” fuse links Breaking current characteristics curve of “gG” fuse links
Breaking current characteristics curve of “gG” fuse links
