H.V. & L.V. Fuse Link & Base

Bolt Connected Round Cartridge Type Fast-acting Fuse Links For Semiconductor Protection

Home
Bolt Connected Round Cartridge Type Fast-acting Fuse Links For Semiconductor Protection Bolt Connected Round Cartridge Type Fast-acting Fuse Links For Semiconductor Protection Bolt Connected Round Cartridge Type Fast-acting Fuse Links For Semiconductor Protection Bolt Connected Round Cartridge Type Fast-acting Fuse Links For Semiconductor Protection Bolt Connected Round Cartridge Type Fast-acting Fuse Links For Semiconductor Protection Bolt Connected Round Cartridge Type Fast-acting Fuse Links For Semiconductor Protection
Bolt Connected Round Cartridge Type Fast-acting Fuse Links For Semiconductor Protection Bolt Connected Round Cartridge Type Fast-acting Fuse Links For Semiconductor Protection Bolt Connected Round Cartridge Type Fast-acting Fuse Links For Semiconductor Protection Bolt Connected Round Cartridge Type Fast-acting Fuse Links For Semiconductor Protection Bolt Connected Round Cartridge Type Fast-acting Fuse Links For Semiconductor Protection Bolt Connected Round Cartridge Type Fast-acting Fuse Links For Semiconductor Protection
Bolt Connected Round Cartridge Type Fast-acting Fuse Links For Semiconductor Protection Bolt Connected Round Cartridge Type Fast-acting Fuse Links For Semiconductor Protection Bolt Connected Round Cartridge Type Fast-acting Fuse Links For Semiconductor Protection Bolt Connected Round Cartridge Type Fast-acting Fuse Links For Semiconductor Protection Bolt Connected Round Cartridge Type Fast-acting Fuse Links For Semiconductor Protection Bolt Connected Round Cartridge Type Fast-acting Fuse Links For Semiconductor Protection
Bolt Connected Round Cartridge Type Fast-acting Fuse Links For Semiconductor Protection Bolt Connected Round Cartridge Type Fast-acting Fuse Links For Semiconductor Protection Bolt Connected Round Cartridge Type Fast-acting Fuse Links For Semiconductor Protection Bolt Connected Round Cartridge Type Fast-acting Fuse Links For Semiconductor Protection Bolt Connected Round Cartridge Type Fast-acting Fuse Links For Semiconductor Protection Bolt Connected Round Cartridge Type Fast-acting Fuse Links For Semiconductor Protection

Applications

  • This series of fuses are mainly used in circuits of AC 50Hz, rated voltage of 1500V and rated current of 1000A, to protect the semiconductor components and the whole unit from short-circuit.
  • The breaking capacity of the fuses is up to 100KA.
  • The fuses are compliant with the IEC269-1/IEC269-4 and GB13539.1/GB13539.4.

Design Features

  • The variable cross-section fuse elements made of pure silver sheets are sealed in the melting tube made of epoxy glass fibre which is heat resistant. The fuse tube is filled with chemically-treated high-purity quarts as arc-extinguishing medium. The two ends of the melting body are connected to the (knife) contacts by dot welding.
Table 1
Types Rated voltage(V) Rate current(A) Dimension/ Size (mm) Weight (g)
Fig. A B C ΦD E F Φd
RS94A 500 40 ~ 200 Figure 1 70 52 32 28 22 5 8.2 x 12 98
RS94C 500 40 ~ 200 Figure 1 80 62 42 28 22 5 8.2 x 12 106
RS94D 250 30 ~ 200 Figure 1 80 57 26 29 22 5 8.2 x 12 120
RS94E 500 30 ~ 200 Figure 1 80 60 42 31 24 5 8.2 x 12 142
RS94F 500 40 ~ 200 Figure 1 80 58 38 33 25 5 8.2 x 12 135
RS94G 500 40 ~ 400 Figure 1 88 62 42 36 26 5 10.2 x 15 202.5
RS94H 250 30 ~ 150 Figure 1 70 53 27 22 16 5 8.2 x 12 82
RS94J 250 40 ~ 250 Figure 1 67 51 26 26 19 3.5 8.2 x 12 102
RS95A 500/660 50 ~ 250 Figure 1 91 72 54 28 22 5 8.2 x 12 112.5
RS95B 500/660 50 ~ 300 Figure 1 92 73 54 31 25 5 8.2 x 12 150
RS95C 500/660 50 ~ 200 Figure 1 92 73 54 26 19 5 8.2 x 12 114
RS95D 500/660 100 ~ 200 Figure 1 92 72 45 30 25 5 8.2 x 12 149
RS95E 500/660 40 ~ 350 Figure 1 92 72 54 31 25 6 8.2 x 12 155
RS95F 500/660 50 ~ 250 Figure 1 93 75 54 26 19 5 8.2 x 12 145
RS95FS 500 100 Figure 1 100 82 48 26 19 3 8.2 x 12 124
RS95G 500/660 50 ~ 300 Figure 1 93 75 53 31 25 5 8.2 x 12 128
RS95H 500 200 ~ 400 Figure 1 96 70 42 36 26 5 10.2 x 15 193
RS95K 500 250 ~ 400 Figure 1 98 70 38 47 32 5 10.2 x 15 320
RS95L 700 100 ~ 300 Figure 1 127 108 89 31 25 5 8.2 x 12 195
RS95M 500 50 ~ 200 Figure 1 110 81 50 31 25 5 8.2 x 10 165
RS95N 700 50 ~ 200 Figure 1 128 101 75 25 20 6 10.5 x 15 172
RS95P 250 250 ~ 400 Figure 1 98 68 41 38 25 6 10.5 x 18 218
RS95Q 500 50 ~ 200 Figure 1 110 95 75 25 18 5 6.2 x 10 148
RS95R 700 35 ~ 100 Figure 1 110 84 50 31 25 6 8.2 x 18 160
RS95S 250 160 ~ 300 Figure 1 100 65 30 36 30 6 10.5 x 15 188
RS95T 500/660 100 ~ 250 Figure 1 112 87 52 27 21 5 10 x 18 210
RS95U 500 100 Figure 1 100 82 48 26 19 5 8.2 x 12 148
RS95V 600 100 ~ 200 Figure 1 128 98 60 25 19 3 10.2 x 15 262
RS95W 500 40 ~ 200 Figure 1 129 96 53 34 24 6 12 x 20 183
RS96A 500 200 ~ 300 Figure 1 100 70 40 40 26 6 10.5 x 18 230
RS96B 500/660 200 ~ 400 Figure 1 110 83 53 38 26 6 8.2 x 12 240.5
RS96C 500/660 100 ~ 200 Figure 1 112 90 70 25 20 6 10.5 x 15 125
RS96D 500/660 75 ~ 200 Figure 1 112 90 60 36 26 5 10.5 x 15 241
RS96E 500/660 200 ~ 300 Figure 1 112 93 73 31 25 5 7 x 9.5 166
RS96F 500/660 200 ~ 400 Figure 1 113 87 70 40 26 6 10.5 x 15 255
RS96G 500/660 400 ~ 500 Figure 1 114 87 56 51 38 6 10.5 x 15 437
RS96GK 500 400 ~ 500 Figure 1 97 67 38 51 36 8 11 x 17 198
RS96H 500/660 300 Figure 1 117 92 67 28 22 3 7 x 9.5 132
RS96K 500/660 200 ~ 400 Figure 1 117 80 52 40 32 6 10.5 x 15 280
RS96L 500/660 200 ~ 400 Figure 1 117 89 57 37 30 6 10.5 x 15 280
RS96M 500 50 ~ 200 Figure 1 135 113 67 34 20 5 8.2 x 12 196
RS96N 500 250 ~ 400 Figure 1 115 87 58 39 26 6 10.5 x 18 245
RS96P 700 125 ~ 200 Figure 1 130 80 50 38 25 6.3 10.5 x 26 250
RS96Q 250 315 ~ 400 Figure 1 100 71 38 43 35 9 10.5 x 15 195
RS96R 500/660 35 ~ 300 Figure 1 113 83 53 40 30 6.5 12.2 x 18 197
RS96S 50/660 40 ~ 250 Figure 1 95 68 40 27 20 5 9 x 18 153
RS97A 500/660 300 ~ 500 Figure 1 120 90 58 46 32 6 10.5 x 18 450
RS97B 500/660 50 ~ 200 Figure 1 126 100 74 38 26 6 10.5 x 18 295
RS97C 500/660 350 ~ 500 Figure 1 128 98 70 51 38 6 10.5 x 18 460
RS97D 500/660 200 ~ 400 Figure 1 130 98 72 38 26 6 10.5 x 18 288
RS97E 500/660 200 ~ 350 Figure 1 145 111 77 38 29 5 7 x 11 300
RS97F 500/660 200 ~ 400 Figure 1 145 105 76 41 28 8 10.5 x 18 355
RS97G 500/660 200 ~ 400 Figure 1 146 110 76 41 29 5 7 x 9.5 341
RS97H 500/660 200 ~ 400 Figure 1 146 110 75 48 36 8 12.5 x 18 520
RS97K 500/660 200 ~ 400 Figure 1 130 100 70 53 42 8 14.2 x 18 480
RS97L 500 200 ~ 400 Figure 1 125 103 48 51 38 6 10.5 x 18 420
RS97M 500 400 ~ 500 Figure 1 145 102 53 51 38 6.3 14.5 x 30 465
RS97N 500/660 200 ~ 400 Figure 1 145 113 88 38 25 6..3 10.5 x 18 353
RS98A 500/660 600 Figure 1 165 114 56 64 50 8 10.5 x 18 635
RS98B 500/660 600 Figure 1 170 130 80 70 50 6 10.5 x 18 1280
RS98C 500/660 500 Figure 1 181 133 86 51 40 10 10.5 x 15 720
RS98D 500/660 600 Figure 1 180 131 85 64 50 10 14.2 x 18 970
RS98E 700 250 ~ 400 Figure 1 130 90 50 51 38 6.3 14.2 x 28 450
RS98F 700 300 ~ 400 Figure 1 181 130 72 64 50 10 14.2 x 28 780
RS98G 700 400 ~ 600 Figure 1 175 135 73 63 51 10 12.5 x 18 1135
RS98H 700 400 ~ 500 Figure 1 166 118 70 50 38 6 16.2 x 22 583
RS98K 700 500 ~ 600 Figure 1 181 114 50 64 51 9.5 14.2 x 45 996
RS98L 700 500 ~ 800 Figure 1 167 137 72 70 50 8 10.5 x 18 1100
RS98M 700 500 ~ 600 Figure 1 160 108 53 63 50 9 14.2 x 23 925
RS98N 700 500 ~ 600 Figure 1 180 125 73 60 46 13 14.2 x 25 1050
RS98P 500 400 ~ 500 Figure 1 110 80 53 50 40 6 10.5 x 18 410
RS99A 500/660 500 ~ 600 Figure 1 190 140 90 65 50 10 14.2 x 18 1058
RS99B 500/660 400 ~ 600 Figure 1 203 152 95 64 50 10 10.5 x 18 1410
RS99C 500/660 400 ~ 600 Figure 1 217 157 101 60 50 12 16.2 x 28 1420
RS99D 500 800 ~ 1000 Figure 1 180 127 85 76 61 11.3 16.2 x 22 1786
RS99E 700 800 ~ 1250 Figure 1 200 150 100 90 70 13 20.5 x 30 1920
RS99F 700 400 ~ 600 Figure 1 180 129 72 64 51 9.5 13.5 x 18 1200
RS99G 700 800 ~ 1000 Figure 1 195 150 95 75 61 10 13 x 18 1830
RS99H 500 500 ~ 600 Figure 1 145 130 46 52 38 8 15 x 29 560
RS99J 500 400 ~ 600 Figure 1 175 123 70 65 50 10 14.2 x 30 962
RS99K 500 400 ~ 600 Figure 1 181 133 72 64 51 10 13 x 33 1023
RS99L 500 400 ~ 600 Figure 1 175 125 71 65 50 10 14.2 x 33 1010
RGOK, RG2, RGSOK, RGS2 RGOK, RG2, RGSOK, RGS2 RGOK, RG2, RGSOK, RGS2 RGOK, RG2, RGSOK, RGS2 RGOK, RG2, RGSOK, RGS2
Figure 1
RGOK, RG2, RGSOK, RGS2
RGOK, RG2, RGSOK, RGS2
RGOK, RG2, RGSOK, RGS2
Table 2
Types Rated voltage(V) Rate current(A) Dimension/ Size (mm) Weight (g)
Fig.

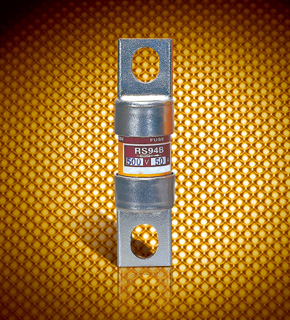

RS94B 500 40 ~ 100 Figure 2 55
RS94B RS94B RS94B RS94B RS94B
RS94B RS94B RS94B RS94B RS94B
Figure 2
RS94B
Table 3
Types Rated voltage(V) Rate current(A) Dimension/ Size (mm) Weight (g)
Fig.

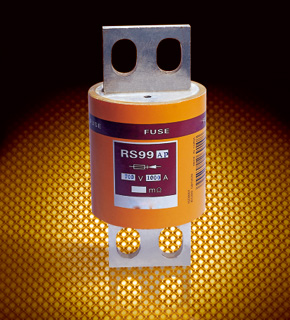

RS99AP 700 1000 Figure 3 2100
RS99AP RS99AP RS99AP RS99AP RS99AP
RS99AP RS99AP RS99AP RS99AP RS99AP

Figure 3
RS99AP
Table 4
Types Rated voltage(V) Rate current(A) Dimension/ Size (mm) Weight (g)
Fig.

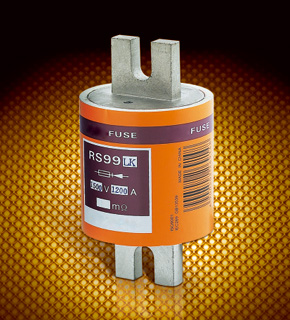

RS99LK 1500 1200 Figure 4 996
RS99LK RS99LK RS99LK RS99LK RS99LK
RS99LK RS99LK RS99LK RS99LK RS99LK
Figure 4
RS99LK
Table 5
Types Rated voltage(V) Rate current(A) Dimension/ Size (mm) Weight (g)
Fig.

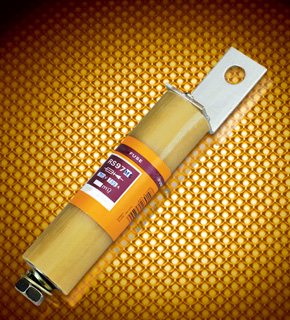

RS97ML 1200 180 Figure 5 1127
RS97ML RS97ML RS97ML RS97ML RS97ML
RS97ML RS97ML RS97ML RS97ML RS97ML
Figure 5
RS97ML
Table 6
Types Rated voltage(V) Rate current(A) Dimension/ Size (mm) Weight (g)
Fig.
RS99PX 500 1000 Figure 6 1652
RS99PX RS99PX RS99PX RS99PX RS99PX
RS99PX RS99PX RS99PX RS99PX RS99PX
Figure 6
RS99PX

Characteristics Curve

Time-current characteristics curve of (fast) fuse linksfor semiconductor protection Time-current characteristics curve of (fast) fuse linksfor semiconductor protection Time-current characteristics curve of (fast) fuse linksfor semiconductor protection Time-current characteristics curve of (fast) fuse linksfor semiconductor protection
Time-current characteristics curve of (fast) fuse linksfor semiconductor protection Time-current characteristics curve of (fast) fuse linksfor semiconductor protection Time-current characteristics curve of (fast) fuse linksfor semiconductor protection Time-current characteristics curve of (fast) fuse linksfor semiconductor protection
Time-current characteristics curve of (fast) fuse linksfor semiconductor protection Time-current characteristics curve of (fast) fuse linksfor semiconductor protection Time-current characteristics curve of (fast) fuse linksfor semiconductor protection Time-current characteristics curve of (fast) fuse linksfor semiconductor protection
Time-current characteristics curve of (fast) fuse linksfor semiconductor protection Time-current characteristics curve of (fast) fuse linksfor semiconductor protection Time-current characteristics curve of (fast) fuse linksfor semiconductor protection Time-current characteristics curve of (fast) fuse linksfor semiconductor protection
Time-current characteristics curve of (fast) fuse linksfor semiconductor protection
Breaking current characteristics curve of (fast) fuselinks for semiconductor protection Breaking current characteristics curve of (fast) fuselinks for semiconductor protection Breaking current characteristics curve of (fast) fuselinks for semiconductor protection Breaking current characteristics curve of (fast) fuselinks for semiconductor protection
Breaking current characteristics curve of (fast) fuselinks for semiconductor protection Breaking current characteristics curve of (fast) fuselinks for semiconductor protection Breaking current characteristics curve of (fast) fuselinks for semiconductor protection Breaking current characteristics curve of (fast) fuselinks for semiconductor protection
Breaking current characteristics curve of (fast) fuselinks for semiconductor protection Breaking current characteristics curve of (fast) fuselinks for semiconductor protection Breaking current characteristics curve of (fast) fuselinks for semiconductor protection Breaking current characteristics curve of (fast) fuselinks for semiconductor protection
Breaking current characteristics curve of (fast) fuselinks for semiconductor protection Breaking current characteristics curve of (fast) fuselinks for semiconductor protection Breaking current characteristics curve of (fast) fuselinks for semiconductor protection Breaking current characteristics curve of (fast) fuselinks for semiconductor protection
Breaking current characteristics curve of (fast) fuselinks for semiconductor protection
